Name: 1700 Max Automated Box Furnace / Bottom Loading ( 8 L) - VBF-1700X-L8AX
SKU: 2258038

Product Details ＋

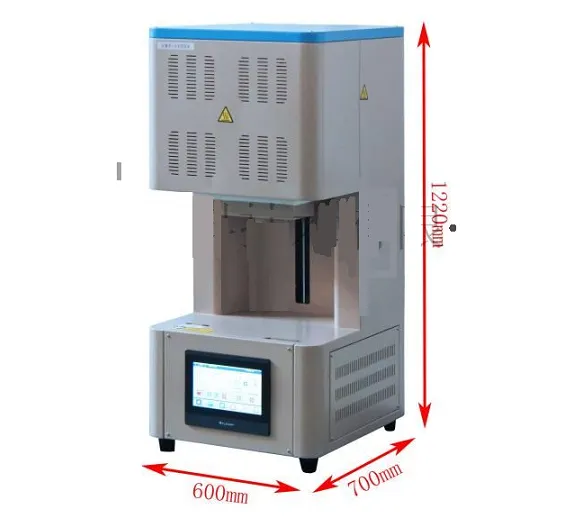

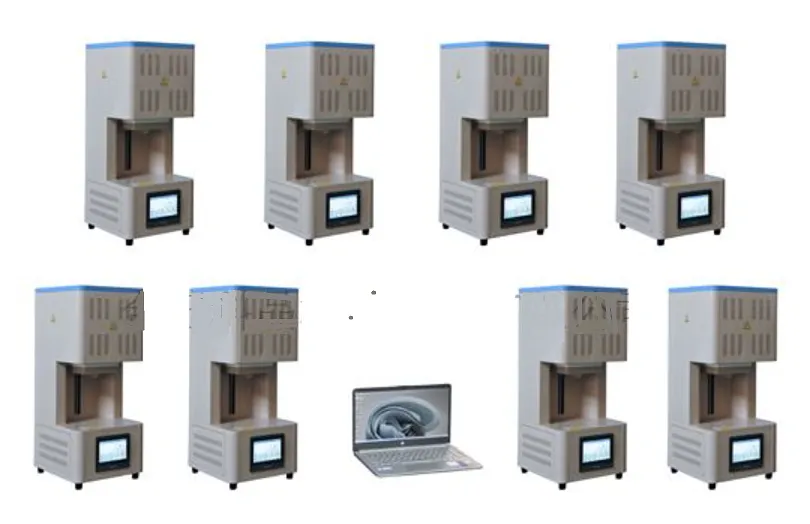

The VBF-1700X-L8AX is an automated bottom-loading muffle furnace with a maximum temperature of 1700℃, The furnace is operated by PC and enables one-key automated execution of sintering processes via computer control, including closing the door, raising the temperature, dwelling, and cooling, and opening the door. It can be integrated with a robotic system to facilitate automatic sample loading, unloading, and retrieval. A single PC can control multiple units up to 8 furnaces at the same time.

SPECIFICATIONS:

Furnace Structure	Dual-layer shell structure High-purity alumina fiber material furnace chamber One laptop computer is included for automatic operation
Power	Voltage: AC220V /- 10% , 50/60 HZ Power: 8 KW A 3-meter power cable is included without a plug
Heating Chamber	200 x200 x200 ( mm), ( ~ 8 x 8 x 8 ") 8 Liter Capacity Heating rate: ≤10/min Thermal couple: B type Uniform zone: 150x150x150 mm in center within /- 5oC
Working Temp.	Max. 1700oC < 60 minutes Continuous Working Temperature 1600°C Minimum temperature: 1100 °C
Temperature Control	PID automatic temperature control system Intelligent 30-stage programmable control Default DB9 PC communication connection port is built in for PC operation Temperature control accuracy: ±1. (optional European temperature control accuracy up to ±0.1)
PC operation	One PC and pre-installed software are included to achieve automatic operation, including closing the door, raising the temperature, dwelling, and cooling, and opening the door. RJ45 communication interface on the side panel, providing MODBUS RTU communication protocol for instrument control and door switch One computer can control multiple furnaces simultaneously Equipped with φ6.35mm gas inlet (rear) and φ30mm outlet(top) ports which allow the introduction of inert gas into the chamber
Automation Collaborative Robot for sample loading (optional)	Full automation with sample loading is optional via the integration with a robot arm.
Compliance	CE certified NRTL or CSA certification is available upon request

1700 Max Automated Box Furnace / Bottom Loading ( 8 L) - VBF-1700X-L8AX
