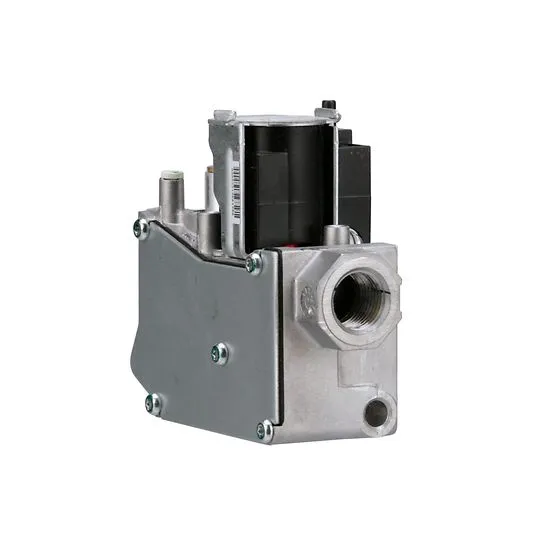

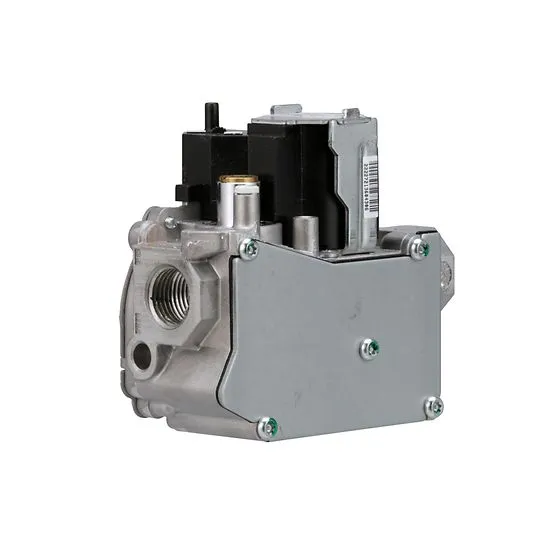

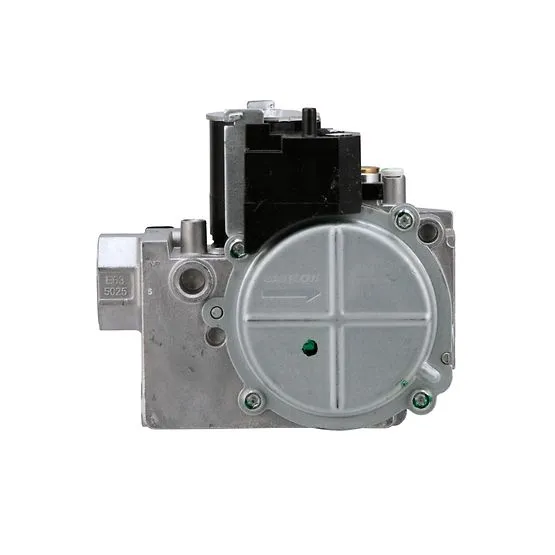

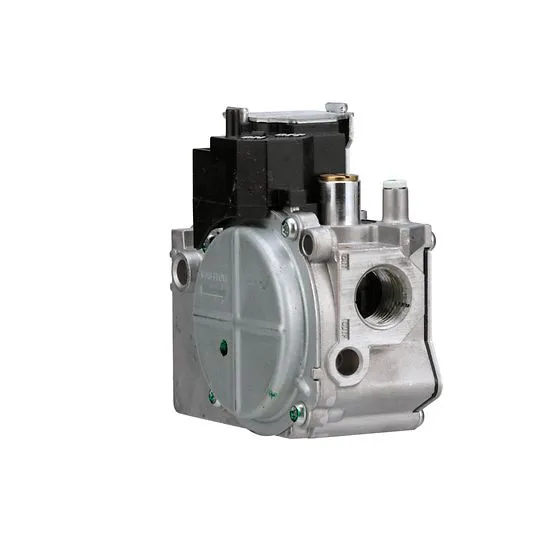

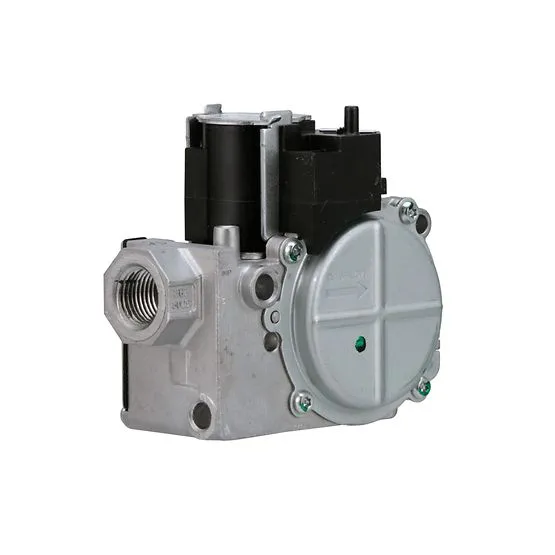

Copeland White-Rodgers 36J22Y-212 Single Stage, HSI/DSI Gas Valve, Goodman Replacement

Goodman replacement for single stage HSI/DSI gas valve with maximum regulation feature, 24 Vac, 1/2 in X 1/2 in NPT, Fast Opening, Inlet / Outlet Pressure Taps, LP Gas Conversion Kit. Replaces Goodman 36J22Y-202, 0151M00037, 0151M00037S

Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
Fast open, single stage
Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
Mounts in any position including upside down

Specifications

Operating Voltage:	24 Vac 50/60 Hz
Temperature Operating Range:	-40 to 175°F (-40 to 79°C)
Maximum Pressure Rating:	1/2 in. PSI 14.0 in. WC
Pilot Gas Connection:	Compression fitting for 1/4” OD tubing
Inlet & Outlet Pressure Taps:	1/8” NPT
Agency Approvals:	CSA (Canada & US)
