Experience The Ultimate Indoor Comfort With Daikin's Energy-Efficient And Eco-Friendly Air Conditioning Units.

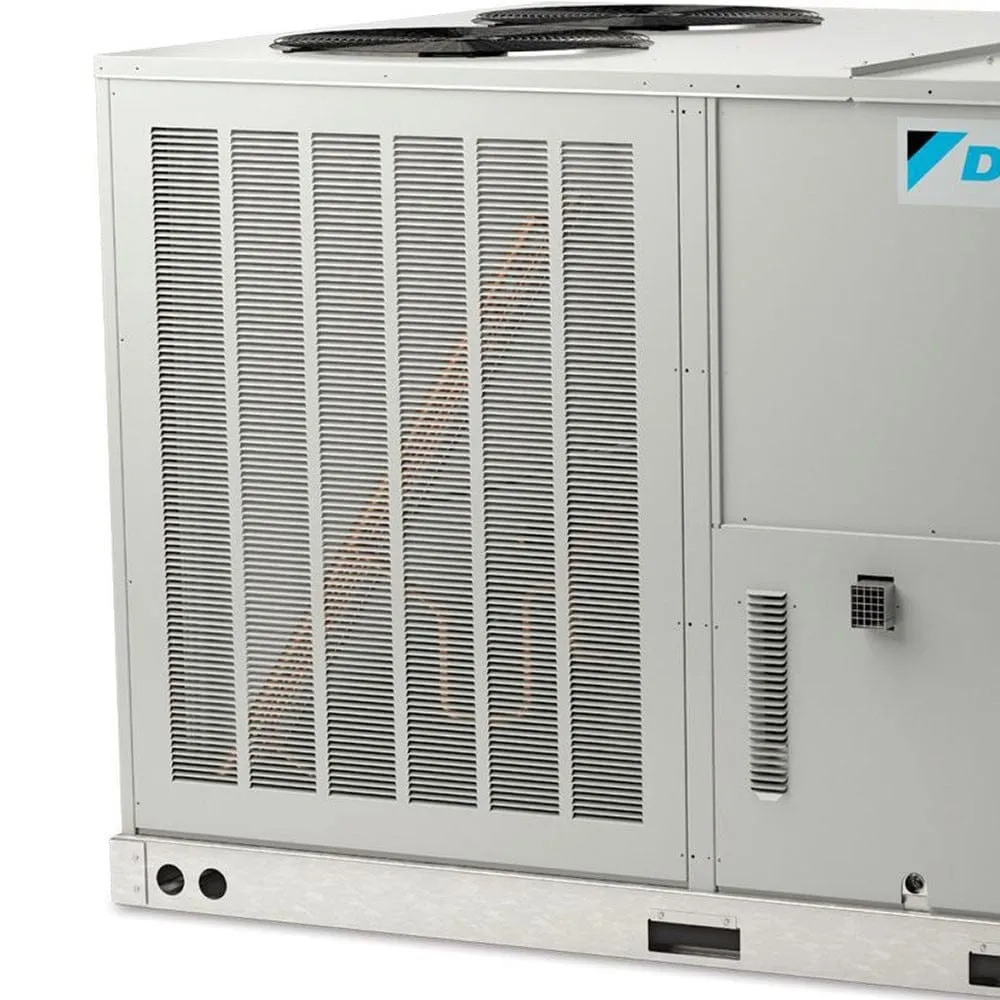

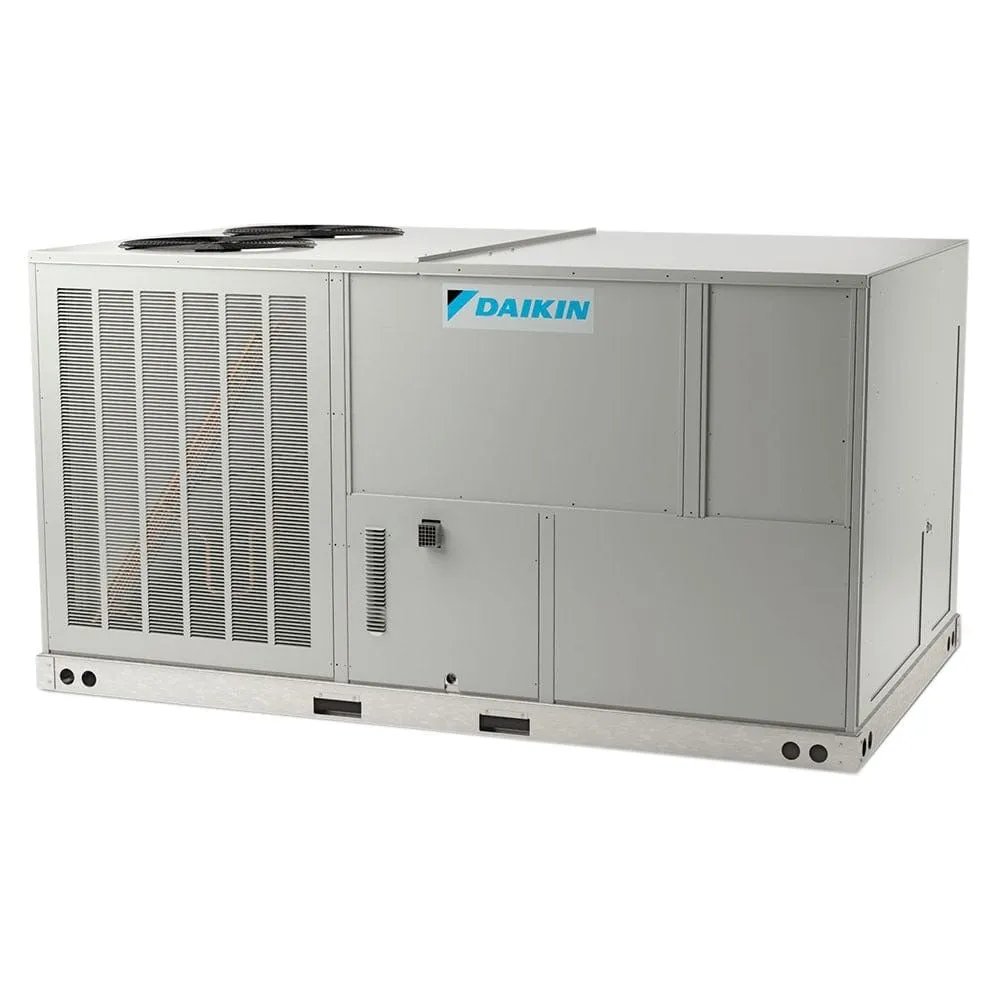

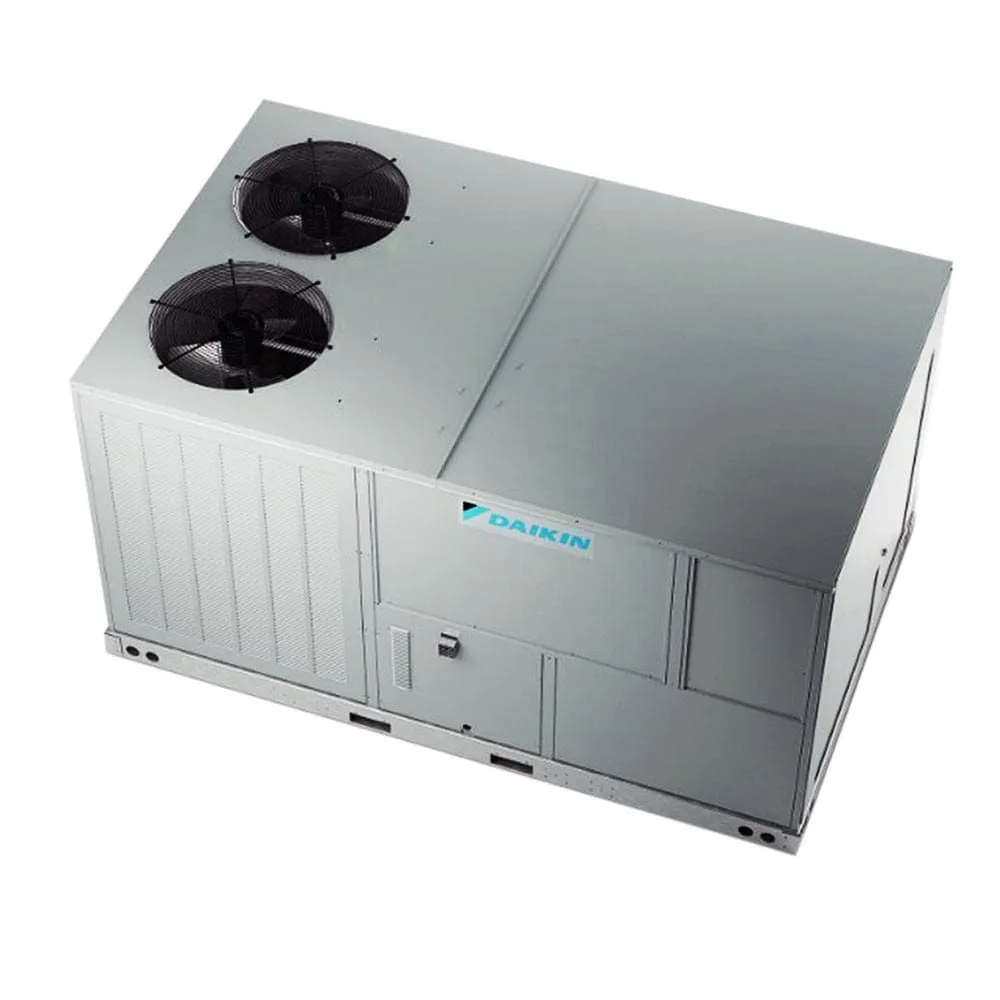

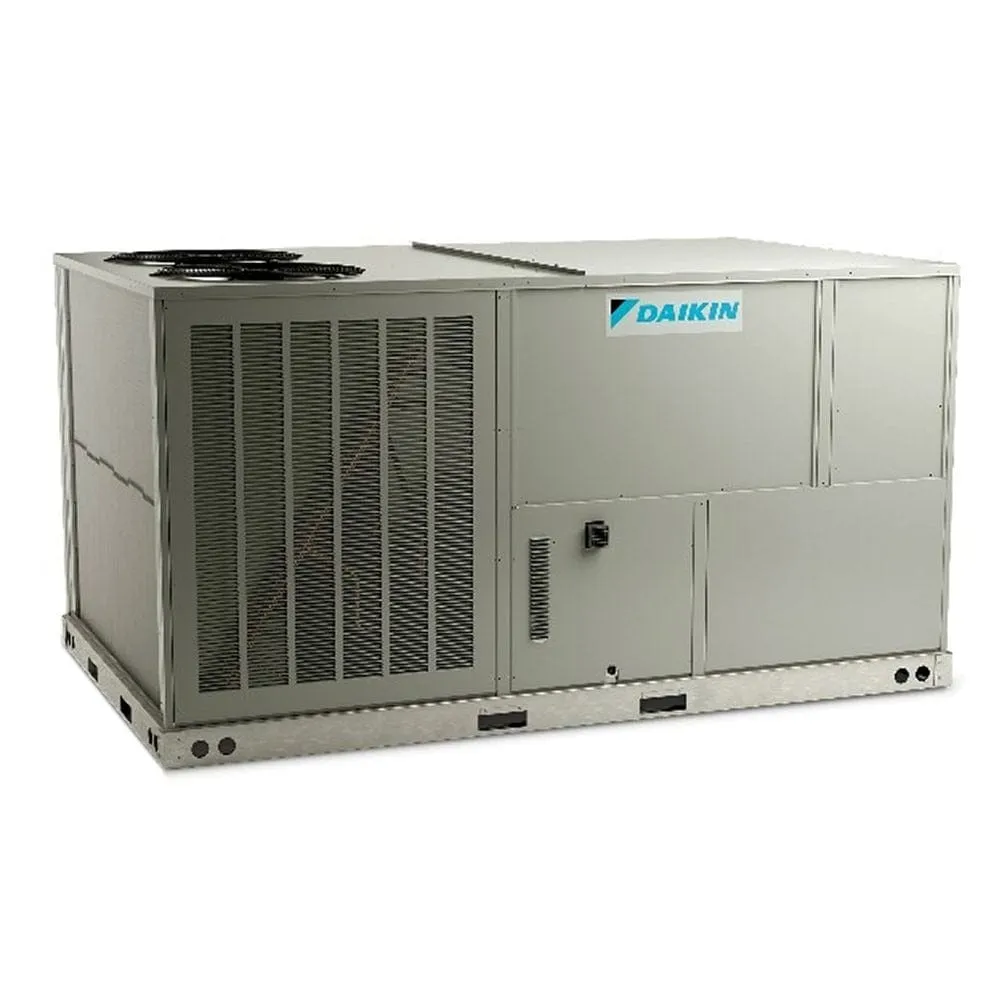

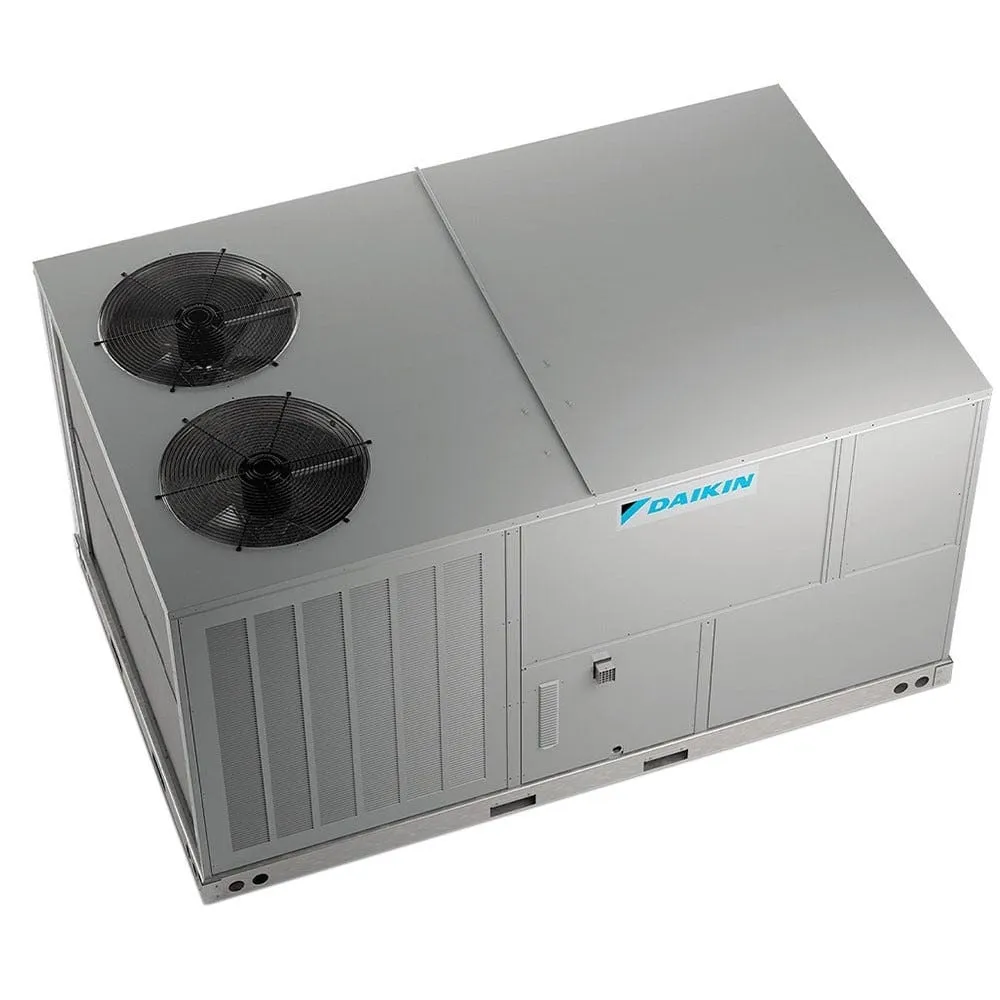

A Daikin Goodman R-410A 12.5 Ton 3 Phase 208/230 DCG Commercial Gas/Electric Package is among the best commercial package units in its class. It is a self-contained heating and cooling system compatible with horizontal or downflow operating applications. It is built with a high efficiency scroll compressor, dual stage heating and cooling, copper tube and aluminum fin coils, 5-Year Parts Warranty, and a 20-Year Heat Exchanger Warranty.
See Features Below:
-
Tufftube™ Tubular Heat Exchanger
-
High-Efficiency Scroll Compressors
-
Two-Stage Heating And Cooling (7.5 - 10 Ton)
-
Copper Tube / Aluminum Fin Coils
-
Micro-Channel Indoor & Outdoor Coils (12.5 Ton)
-
Power Block For Field Wiring
-
High-Capacity, Steel-cased Filter Drier
-
Single-Point Entry
-
24-Volt Terminal Strip
-
Convertible Airflow Orientation
-
Built-In Filter Rack With Standard 2" Filters
Specifications
| Model | DCG1502103BXXX |
|---|---|
| UPC | 663051481688 |
| AHRI Number | 6885862 |
| Gas Furnace Efficiency | 80% |
| Air Flow Direction | Downflow, Horizontal |
| Avg Coverage Area | 3,000 Sq Ft |
| Blower Motor | Multi Speed |
| Compressor | Single Stage |
| Cooling Capacity | 6 Ton |
| EER | 10.8 |
| Electrical Phase | 3-Phase |
| Gas Valve | Two Stage |
| Max Overcurrent Protection | 80 amps |
| Primary Heating Capacity | 145,001 BTU |
| Product Height (in) | 61 |
| Product Length (in) | 62 |
| Product Width (in) | 101 |
| Voltage | 240 |
| Warranty | 5 Year Parts, 20 Year Heat Exchanger |
| Weight (lbs) | 1390.0000 |
Additional Information
-
Cabinet Features
-
Heavy-Gauge, Galvanized-Steel Cabinet With UU-Resistant Powder-Paint Finish
-
Full Perimeter Rail
-
Sloped Drain Pan
-
Easy To Service
-
Complies With California Low Nox Emissions Standards
-
Ahri Certified; ETL Listed
