Product Details

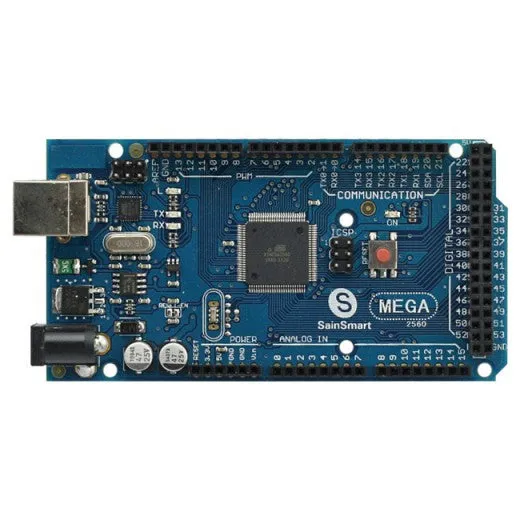

SainSmart Mega2560:

Microcontroller

ATmega2560

Operating Voltage

5V

Input Voltage (recommended)

7-12V

Input Voltage (limits)

6-20V

Digital I/O Pins

54 (of which 14 provide PWM output)

Analog Input Pins

16

DC Current per I/O Pin

40 mA

DC Current for 3.3V Pin

50 mA

Flash Memory

256 KB of which 8 KB used by bootloader

SRAM

8 KB

EEPROM

4 KB

Clock Speed

16 MHz

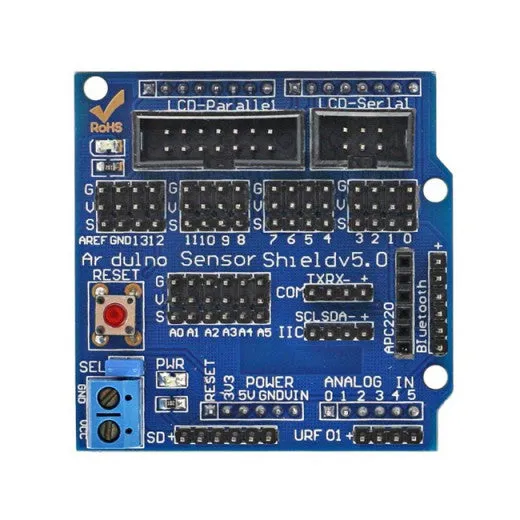

SainSmart SensorShield Module V5:
Features :

  • Ready to  plug & play.
  • It can connect to various modules like sensors, servos, relays, buttons,potentiometers
  •  Each functional module has buckled port with VCC,GND and Output, which has corresponding port on the Sensor Shield, connectedwith a plain 2.54mm dual-female cable you may start playing already. Buckledbrick cables are like cement for bricks, make the connections easier, secureand more professional looking.

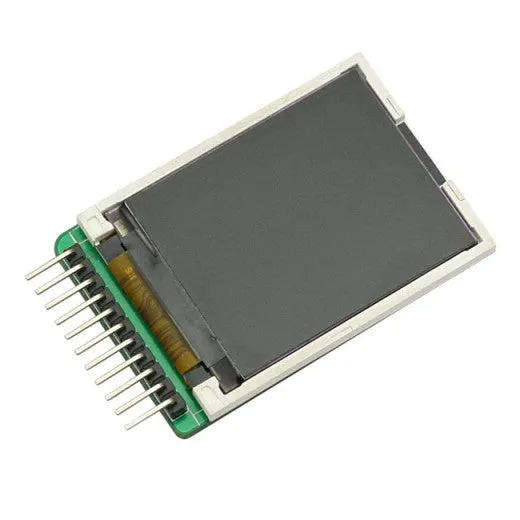

SainSmart 1.8" Serial TFT LCD Display:
Features:

  • Display Mode: 1.8" TFT SPI Interface, Transmissive, Normally white;
  •  Display Color: 262K colors;
  •  Backlight Type: LED
  •  Resolution: 128W * 160H Dots
  •  Board Size: 5.00 x 3.4cm
  •  View Area: 28.03W * 35.04H mm
  •  Dot Size: 0.06W * 3 * 0.18H mm
  •  Dot Pitch: 0.18W * 0.18H mm
  •  Viewing Angle: 6 o'clock
  •  SPI Bus interface
  •  IC Driver: ST7735R
  •  5V/3.3V TTL logic Compatible, can be used in 5V/3.3V IO Arduino systemdirectly


Package List:
1x SainSmart Mega2560
1x SainSmart SensorShield Module V5
1x SainSmart1.8" Serial TFT LCD Display
1x USB Cable

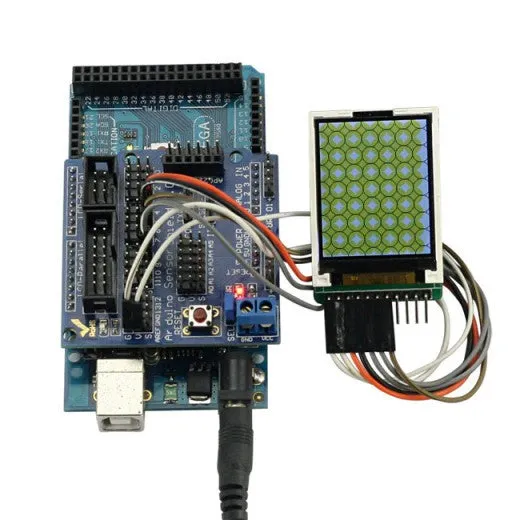

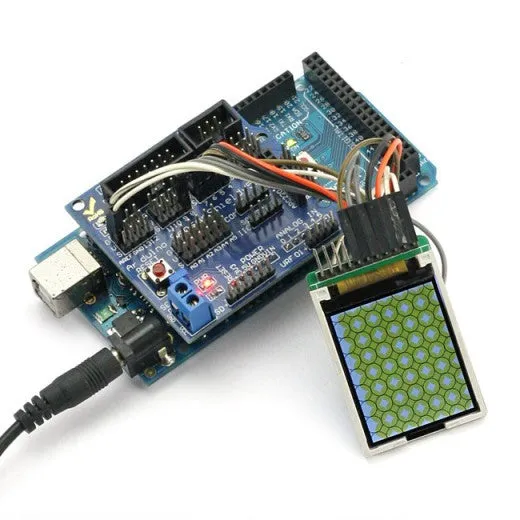

[Discontinued] Sainsmart Mega2560 1.8''LCD Display Sensor Shield V5 Module For Arduino Robot
  • DefaultTitle

$ 0.00

$ 39.19

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
