Product Details
＋

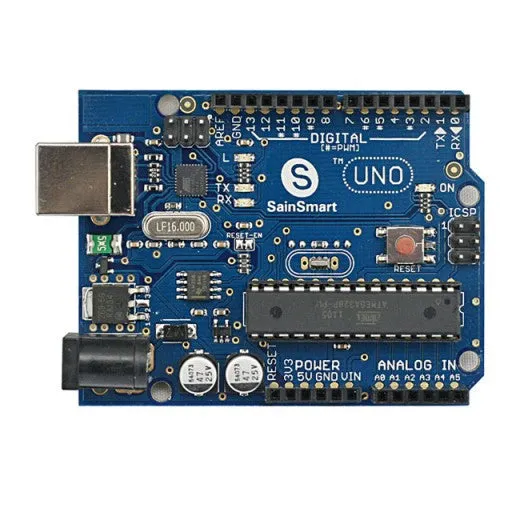

UNO ATMEGA328P-PU:
|
Microcontroller |
ATmega328 |
|
Operating Voltage |
5V |
|
Input Voltage (recommended) |
7-12V |
|
Input Voltage (limits) |
6-20V |
|
Digital I/O Pins |
14 (of which 6 provide PWM output) |
|
Analog Input Pins |
6 |
|
DC Current per I/O Pin |
40 mA |
|
DC Current for 3.3V Pin |
50 mA |
|
Flash Memory |
32 KB (ATmega328) of which 0.5 KB used by bootloader |
|
SRAM |
2 KB (ATmega328) |
|
EEPROM |
1 KB (ATmega328) |
|
Clock Speed |
16 MHz |

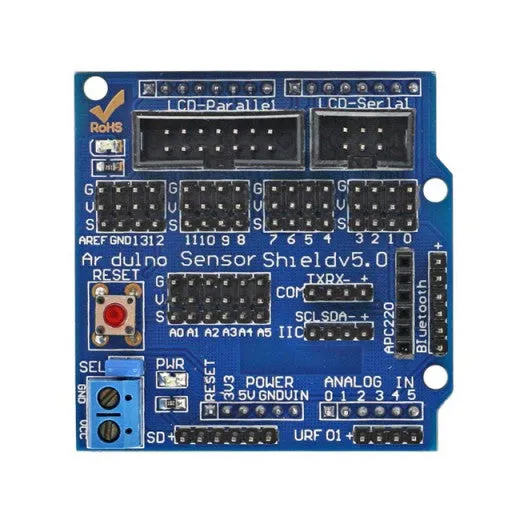

SainSmart SensorShield Module V5:
Features :
- -Ready to plug & play.
- It can connect to various modules like sensors, servos, relays, buttons,potentiometers
- Each functional module has buckled port with VCC,GND and Output, which has corresponding port on the Sensor Shield, connectedwith a plain 2.54mm dual-female cable you may start playing already. Buckledbrick cables are like cement for bricks, make the connections easier, secureand more professional looking.

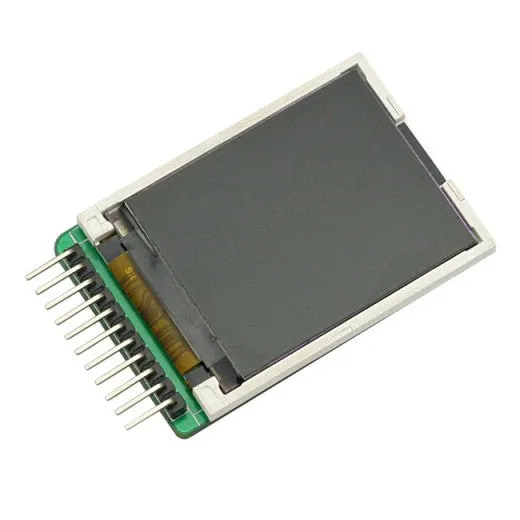

SainSmart 1.8" Serial TFT LCD Display:
Features:
- Display Mode: 1.8" TFT SPI Interface, Transmissive, Normally white;
- Display Color: 262K colors;
- Backlight Type: LED
- Resolution: 128W * 160H Dots
- Board Size: 5.00 x 3.4cm
- View Area: 28.03W * 35.04H mm
- Dot Size: 0.06W * 3 * 0.18H mm
- Dot Pitch: 0.18W * 0.18H mm
- Viewing Angle: 6 o'clock
- SPI Bus interface
- IC Driver: ST7735R
- 5V/3.3V TTL logic Compatible, can be used in 5V/3.3V IO Arduino systemdirectly
Package List:
1x SainSmart UNO ATMEGA328P-PU
1x SainSmart SensorShield Module V5
1x SainSmart1.8" Serial TFT LCD Display
1x USB Cable
