Product Details
＋
Fujitsu 12,000 BTU 23.0 SEER Mid-Tier Wall Mounted Single Zone System is the perfect combination of efficiency and performance. This model uses High Corrosion Resistant Copper which helps prevent leaks in the units' coils. This system comes with an out of the box 7 year compressor / 5 years part warranty, 10 year warranty if its installed by a licensed HVAC tech and registered within 60 days, or a 12 year warranty if it's installed by a Fujitsu Elite contractor.
General Information
- Wall Mounted
- Cooling & Heating
- No
- 1
- 12,000 BTU
- 1/4" x 3/8"

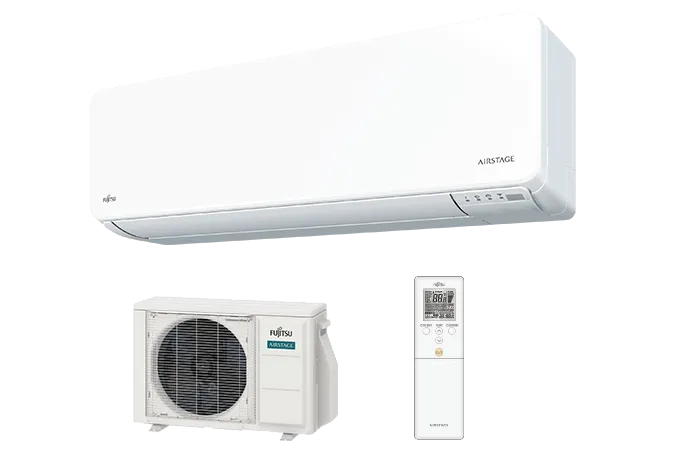

Package Includes
- ASUH12LMAS
- Remote Controller Included
- AOUH12LMAS1
Features
- Uses High Corrosion Resistant Copper which helps prevent leaks
- Compatible with UTY-RNRUZ5 which simplifies sensor monitoring and troubleshooting
- Wifi Compatible with UTY-TFSXF1 so you can remotely operate your system with your smartphone.
- High Efficiency, Energy-Star Rated with SEER rating up to 26.5
- Large cross-flow fan which delivers high performance with lower energy consumption
Indoor Specs
- Moisture Removal: 3.8 Pt./h
- Air Circulation Modes: Hi, Medium, Low, Quiet
- Air Mode CFMs: 453, 353, 265, 147
- Indoor Sound Levels (dBs,Cooling/Heating): 43/43, 36/38, 30/33, 19/21
- Net Weight: 22 lbs
- Dimensions (HxWxD): 10 5/8", 32 13/16", 8 3/4"
- Remote Controller Included
Outdoor Specs
- Voltage: 208-230V
- Circuit Breaker: 15 Amps
- Net Weight: 71 lbs
- Dimensions (HxWxD): 21 5/16", 31 7/16", 11 7/16"
- Outdoor Sound Levels (dBs,Cooling/Heating): 46/48
- Minimum Line-set Length: 16'
- Maximum Line-Set Length: 66'
- Max Vertical Diff: 49'
- Outdoor Line-Set Ports: 1/4" x 3/8"
Performance
- 12,000 BTU
- 14,500 BTU
- Cooling Min-Max: 3,400-13,300 BTU
- Heating Min-Max: 2,800-19,100 BTU
- 23.0
- HSPF: 12.1
- EER: 12.5
- 5 F - 75 F
- 14 F - 115 F
- up to 500 sq ft
Certifications
- Yes
- Yes
- Yes
