Fujitsu 24,000 BTU 19.5 SEER Mid-Tier Extra Low Temp Wall Mounted Single Zone System is an affordable heat pump option for sub zero climates. This model uses High Corrosion Resistant Copper which helps prevent leaks in the units' coils. This system comes with an out of the box 7 year compressor / 5 years part warranty, 10 year warranty if its installed by a licensed HVAC tech and registered within 60 days, or a 12 year warranty if it's installed by a Fujitsu Elite contractor.

General Information

• Unit Type Wall Mounted
• Product Line RLF
• Operating Mode Cooling & Heating
• Low Ambient Heat: Yes
• Number of Zones 1
• Unit Size 24,000 BTU
• Line Set Size 3/8" x 5/8"
• Required Install Kit

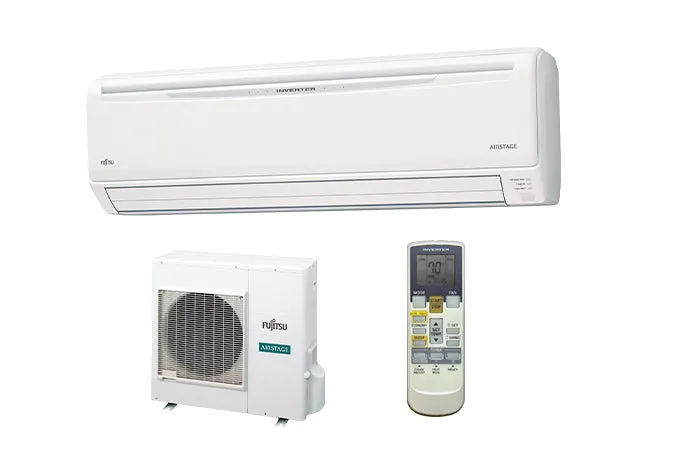

Package Includes

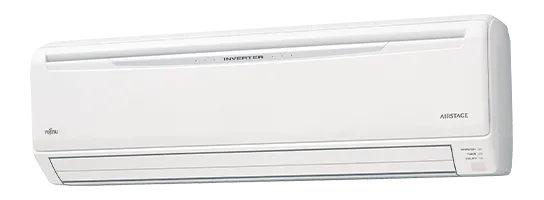

• Indoor Unit ASU24RLF
• Remote Controller Included
• Outdoor Unit AOU24RLXFWH

Features

• Low Temperature Heating: capable of operating down to -15 F
• Wifi Compatible with UTY-TFSXF1 so you can remotely operate your system with your smartphone.
• High Efficiency, Energy-Star Rated with SEER rating up to 19.5
• Large cross-flow fan which delivers high performance with lower energy consumption

Indoor Specs

• Moisture Removal: 6.3 Pt./h
• Air Circulation Modes: Hi, Medium, Low, Quiet
• Air Mode CFMs: 659, 530, 435, 365
• Indoor Sound Levels (dBs,Cooling/Heating): 49/49, 42/42, 37/37, 33/33
• Net Weight: 31 lbs
• Dimensions (HxWxD): 12 5/8", 39 1/4", 9"
• Remote Controller Included

Outdoor Specs

• Voltage: 208-230V
• Circuit Breaker: 20 Amps
• Net Weight: 135 lbs
• Dimensions (HxWxD): 32 3/4", 35 3/8", 13"
• Outdoor Sound Levels (dBs,Cooling/Heating): 54/55
• Minimum Line-set Length: 16'
• Maximum Line-Set Length: 164'
• Max Vertical Diff: 98'
• Outdoor Line-Set Ports: 3/8" x 5/8"

Performance

• Cooling Capacity: 22,000 BTU
• Heating Capacity: 25,200 BTU
• SEER: 19.5
• HSPF: 10.5
• EER: 12.5
• Heating Minimum Temp: -15 F
• Cooling Minimum Temp: -5 F
• Heating Minimum & Maximum Temp: -15 F - 75 F
• Cooling Minimum & Maximum Temp: 14 F - 115 F
• Room Cooling/Heating Capacity up to 1,000 sq ft

Certifications

• Energy Star Yes
• ETL Listed Yes
• AHRI Certified Yes
