Product Details
＋

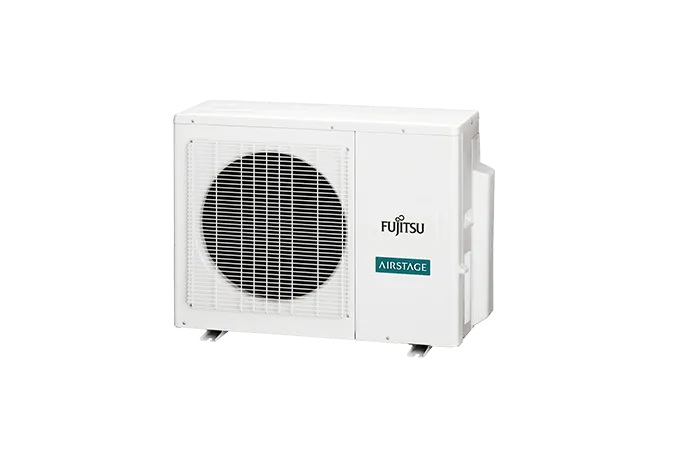

The Fujitsu 3 Zone 24,000 BTU Multi-Zone Outdoor Unit is used to run up to 3 indoor units at once in a multi-zone application. Mix and match various types of indoor units and connect them to one multi-zone outdoor unit.
General Information
- Fujitsu Multi-Zone Outdoor Unit
- Standard Multi-Zone Outdoor Units
- Cooling & Heating
- No
- 3
- 24,000 BTU
Package Includes
- AOU24RLXFZ
Features
- DC Twin Rotary Compressor: high performance compressor, low noise
- Mix and match various types of indoor units
- 3 Zones Available - mix and match indoor units
- SEER ratings between 16.8-18.0
Product Specs
- 14,000-27,000 BTU
- R410
- when Cooling: 51 dB(A)
- when Heating: 52 dB(A)
- Minimum Line-set Length: 16 ft
- Maximum Line-set Length: 82 ft
- Minimum Line-set Total: 49 ft
- Maximum Line-set Total: 164 ft
- Pre-Charge Length: 98 ft
- Line-set Requirements: Liquid 1/4" x 3 | Gas 1/2" x 1, 3/8" x 2
- 20
- Dimensions (HxWxD): 27 9/16", 35 7/16", 13"
Performance
- Rate Capacity Cooling/Heating: 22,000 / 24,000 BTU
- 5 to 75
- Cooling Operating Range (F): 14-115
- SEER Rating (Non-Ducted, Ducted, Mix): 18, 15.5, 16.8
- HSPF (Non-Ducted, Ducted, Mix): 9.5, 9, 9.3
- EER (Non-Ducted, Ducted, Mix): 12.5, 10.6, 11.6
- COP (Non-Ducted, Ducted, Mix): 4.04, 3.42, 3.74
