Product Details
＋

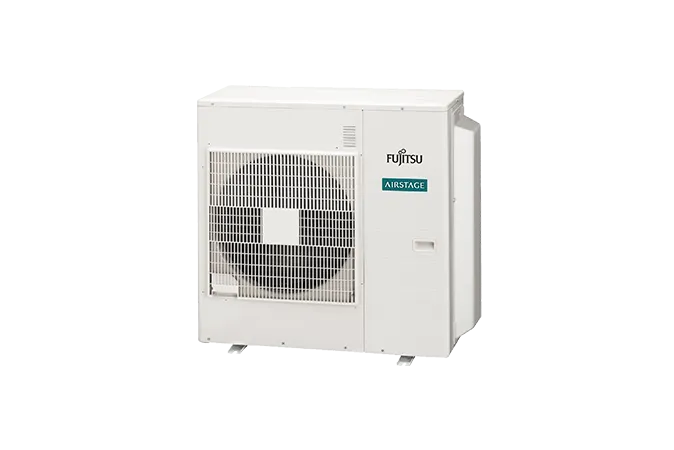

The Fujitsu 5 Zone 45,000 BTU Multi-Zone Outdoor Unit is used to run up to 5 indoor units at once in a multi-zone application. Mix and match various types of indoor units and connect them to one multi-zone outdoor unit.
General Information
- Fujitsu Multi-Zone Outdoor Unit
- Standard Multi-Zone Outdoor Units
- Cooling & Heating
- No
- 5
- 45,000 BTU
Package Includes
- AOU45RLXFZ
Features
- DC Twin Rotary Compressor: high performance compressor, low noise
- Mix and match various types of indoor units
- 5 Zones Available - mix and match indoor units
- SEER ratings between 17.7-19.7
Product Specs
- 34,000-54,000 BTU
- R410
- when Cooling: 53 dB(A)
- when Heating: 55 dB(A)
- Minimum Line-set Length: 16 ft
- Maximum Line-set Length: 82 ft
- Minimum Line-set Total: 49 ft
- Maximum Line-set Total: 262 ft
- Pre-Charge Length: 164 ft
- Line-set Requirements: Liquid 1/4" x 5 | Gas 1/2" x 2, 3/8" x 3
- 30
- Dimensions (HxWxD): 39 5/16", 38 3/16", 14 9/16"
- Weight: 205 lbs
Performance
- Rate Capacity Cooling/Heating: 45,000 / 48,000 BTU
- 5 to 75
- Cooling Operating Range (F): 14-115
- SEER Rating (Non-Ducted, Ducted, Mix): 17.7, 18.7, 19.7
- HSPF (Non-Ducted, Ducted, Mix): 10.3, 9.3, 9.8
- EER (Non-Ducted, Ducted, Mix): 10.5, 9.8, 10.2
- COP (Non-Ducted, Ducted, Mix): 3.6, 3.46, 3.53
