Product Details
＋

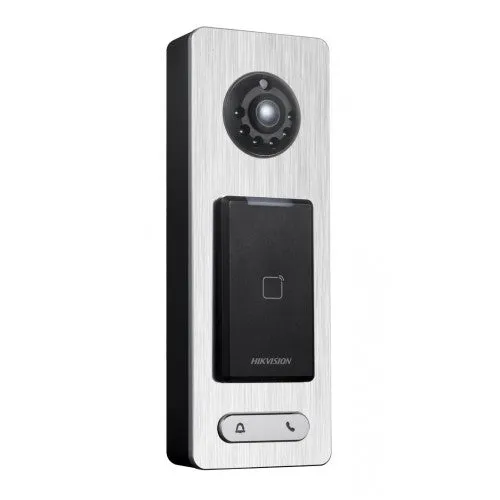

DS-K1T500S is a video access control terminal, which is equipped with HD camera (2 MP/1080p). It supports multiple advanced technologies including face detection, smart card recognition, two-way intercom audio, remote live view, picture capture, video recording through NVR, and so on.
Access Can be granted via either Card or QR code.
- Brushed metal surface
- Communication via TCP/IP and Wi-Fi
- Face detection and picture capturing function implemented by built-in camera (1080P/2MP and IR light, Included)
- Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card (SD Card Sold Seperatly)
- QR code authentication; Generates QR code via iVMS-4200 client software or other systems
- Two way-audio
- Open door remotely via iVMS-4200 client software
- Max. 50,000 cards No., Max. 200,000 access control event records
- Supports Mifare card reading
- Multiple authentication modes: QR code or card
- Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller
Programmed and managed by iVMS4200 Software.
| System Parameters | ||
|---|---|---|
| Micro SD Card: | Max. 128G | |
| Storage: | 50,000 cards 200,000 events |
|
| Card Reading Distance: | ≥2cm | |
| Card Reading Mode: | Mifare Card | |
| Video Storage: | Record and Save Video through NVR or Micro SD Card | |
| Camera: | 2MP/1080P, IR Light | |
| Processor: | 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Communication Mode: | Terminal Mode: Uplink(TCP/IP), Downlink(RS485) Card Reader Mode: Uplink (Wiegand 26/34, RS-485) |
|
| Output Interface: | Lock × 1, Alarm Output (Doorbell) × 1 | |
| Input Interface: | Doorbell Button × 1， Door Sensor × 1， Alarm Input × 2， Tamper-Proof Switch × 1， Exit Button × 1 | |
|
General |
||
|---|---|---|
| Working Current: | 600mA (max) | |
| Power Supply: | DC 12V/1A | |
| Audio: | Audio Input: Build-in Micro Phone( Sensitivity: -25±3DB) Audio Output: Build-in Loudspeaker(1W) |
|
| Dimensions (L×W×H): | 218mm × 78mm × 41mm (8.58" × 3.07" × 1.61") | |
| Protection Level: | IP 65 | |
| Installation: | Wall Mounting | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to 70°C (-40°F to 158°F) | |
