Description:

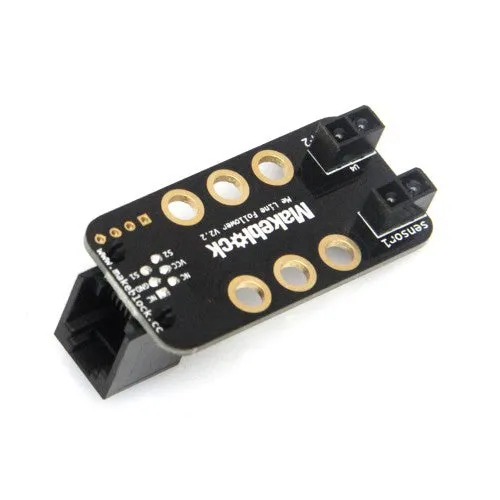

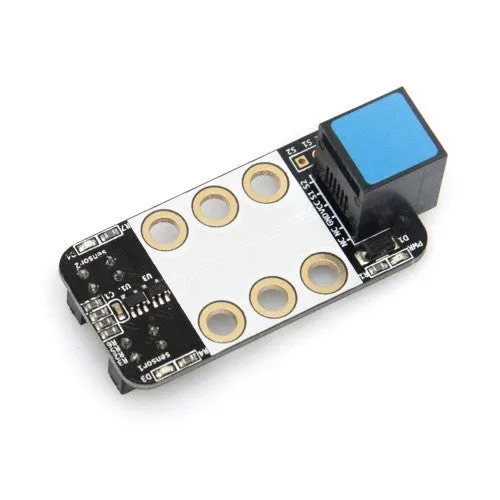

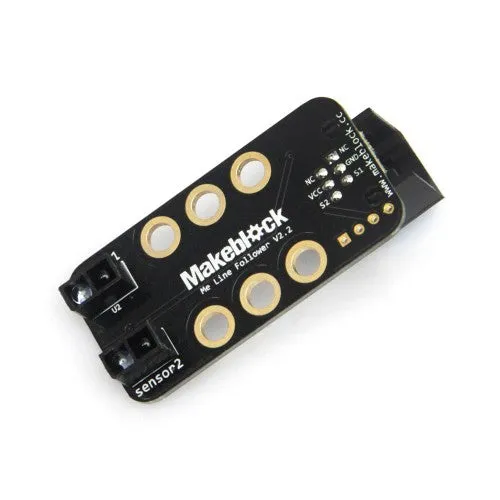

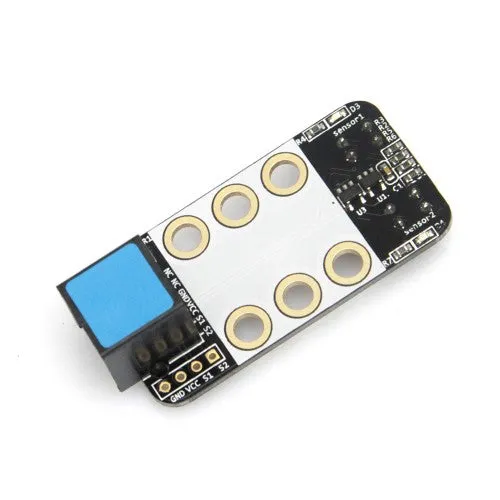

Me Line Follower V2.2 module is designed for the line following robotics. It has two sensors on the module and each sensor contains two parts – an IR emitting LED and an IR sensitive phototransistor. It can output digital signal to Arduino so the robot can reliably follow a black line on a white background, or vice versa.

Features:

• Comes with Arduino library for easy programing
• Easy wiring with 6 Pin RJ25 interface
• Labeled with blue tag and compatible with Me–Base Shield
• 2.54mm breakout pins for connecting with jumper wires
• 16mm interval M4 mounting holes, compatible with Makeblock beams
• A power indicator LED and two sensor state indicator LED

Detecting range: 1~2cm

Dimensions：2.4cmx4.8cm
