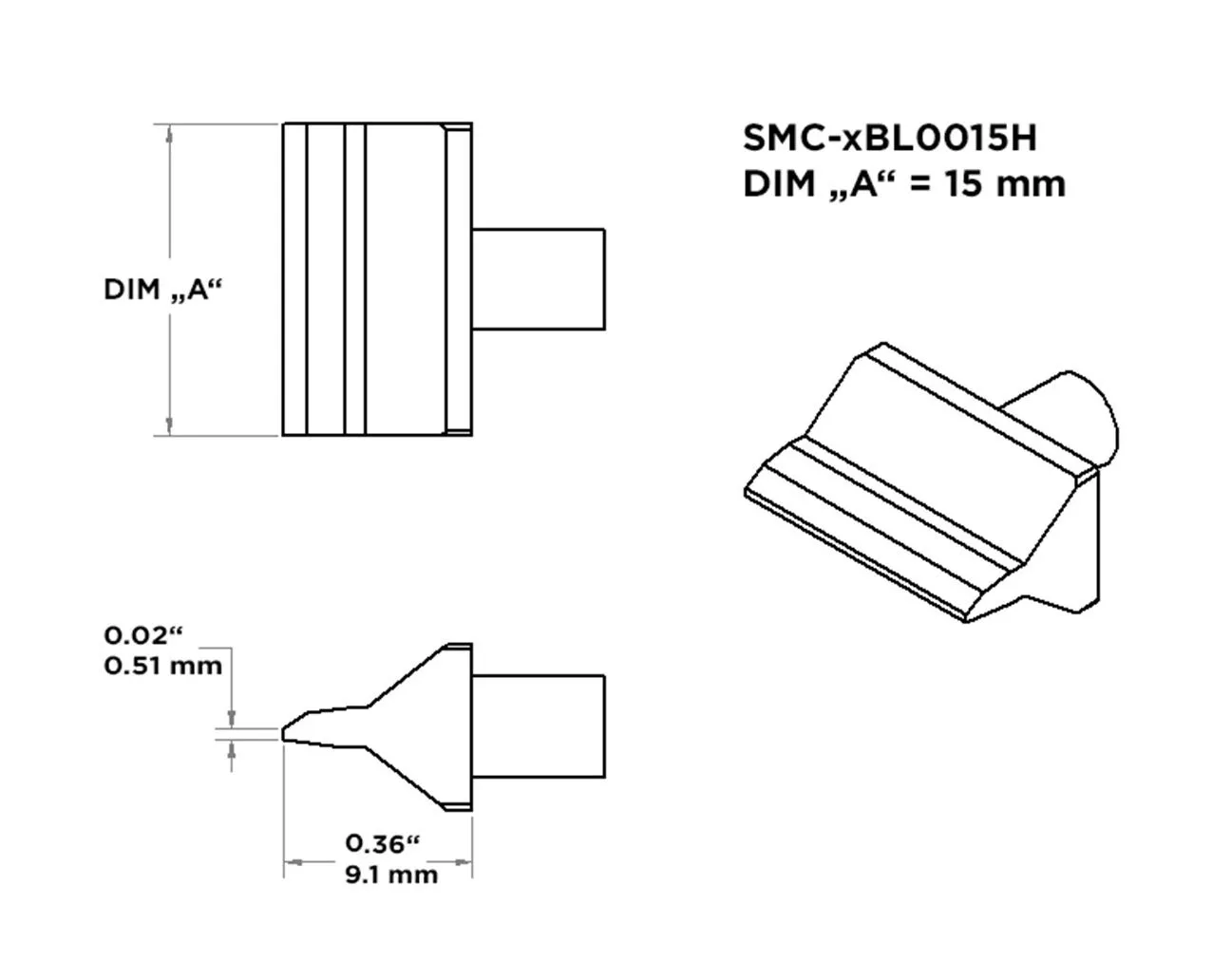

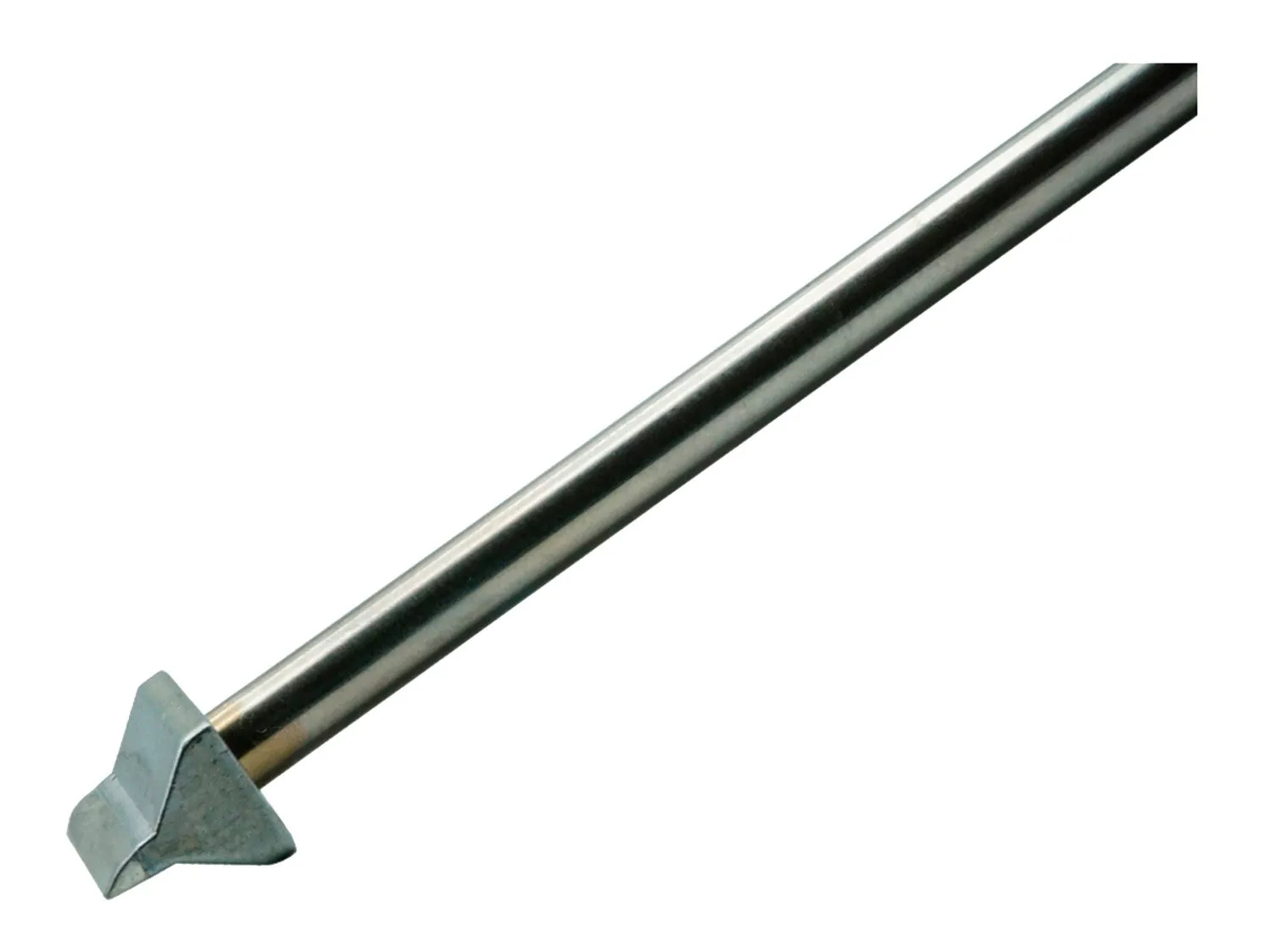

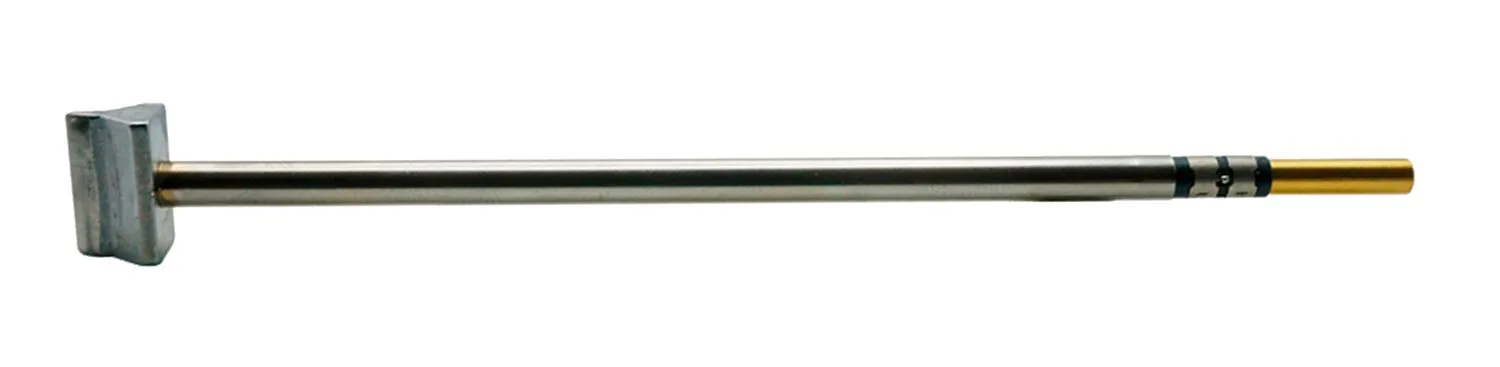

Name: Metcal SMC-5BL0015H 500 Series Solder Blade Rework Cartridge, 15mm
SKU: 2380247

Product Details ＋

CVC-, SMC- Solder Tip Cartridges are the standard soldering tip range for the Metcal CV-5200, CV-500, MX-500, MX-5200 and MX-5200 series soldering systems.
All cartridges are available in 4 temperature ranges, 600-series nominally 330°C, 700-series nominally 390°C, 800-series nominally 440°C and 900-series nominally 470°C.
The temperature/series is designated by the first digit following the dash in the part number. e.g. 600 will all be CVC-/SMC-0xx, 700-series will be CVC-/SMC-7xx, 800-series will be CVC-/SMC-8xx and 900-series will be CVC-/SMC-9xx.
Metcal recommends the 700-series for the majority of applications.
The 600-series for light load or low temperature applications.
800/900-series for high temperature and thermally demanding applications.
Use with leaded and lead-free solder.
The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.
