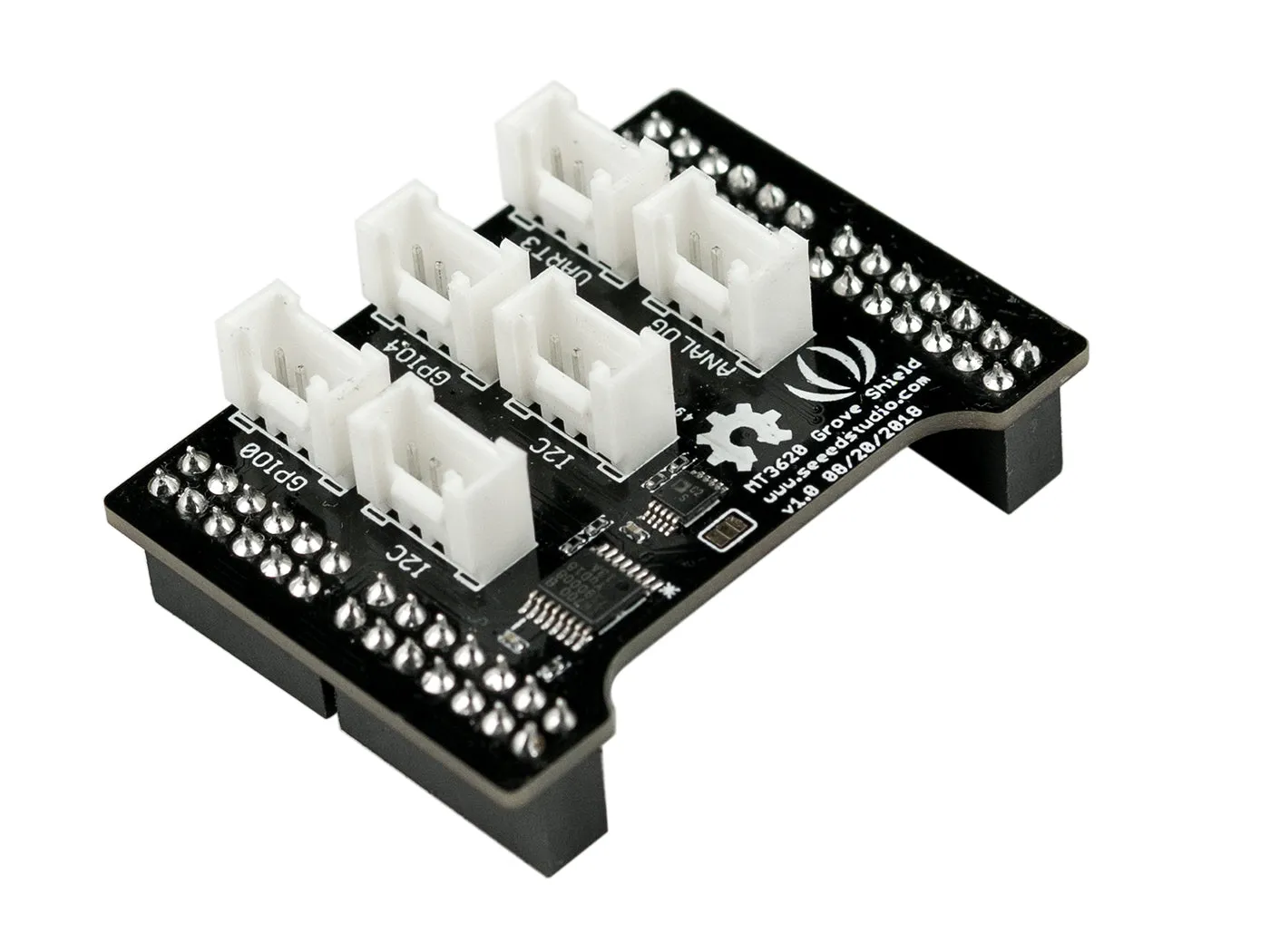

is a product that uses technology, MT3620 Grove Shield is an add-on breakout board designed for MT3620 Development kit.

Azure Sphere MT3620 Development Kit comes with four 2.54mm headers for hardware resources extension from MT3620. MT3620 Grove Shield enable users to quickly apply sensors modules - on MT3620 Development Kit.

Since has not yet supported ADC and I2C on MT3620. This shield serves as an interface between MT3620 UART port and external I2C devices, like the I2C temperature sensor. The basic function of the shield is to help to connect to I2C external device. By using an I2C compatible ADC chip, developer can also read the analog data from analog port.

Key Features

• Master I2C-bus controller with UART interface

• 12-bit ADC, I2C-compatible serial interface

• 6 Grove connectors

• 1 x UART

• 2 x I2C

• 1 x Analog

• 4 x GPIO
