Product Details
＋
This pair of camera modules can be used with any of the , perfectly suited for quick prototyping.
Key features:- Sensor: OV9282
- Type: Global Shutter
- DFOV / HFOV / VFOV: 89° / 80° / 55°
- Resolution: 1MP (1280x800)
- Focus: Fixed-Focus: 19.6 cm - ∞
- Max Framerate: 120 FPS
Description

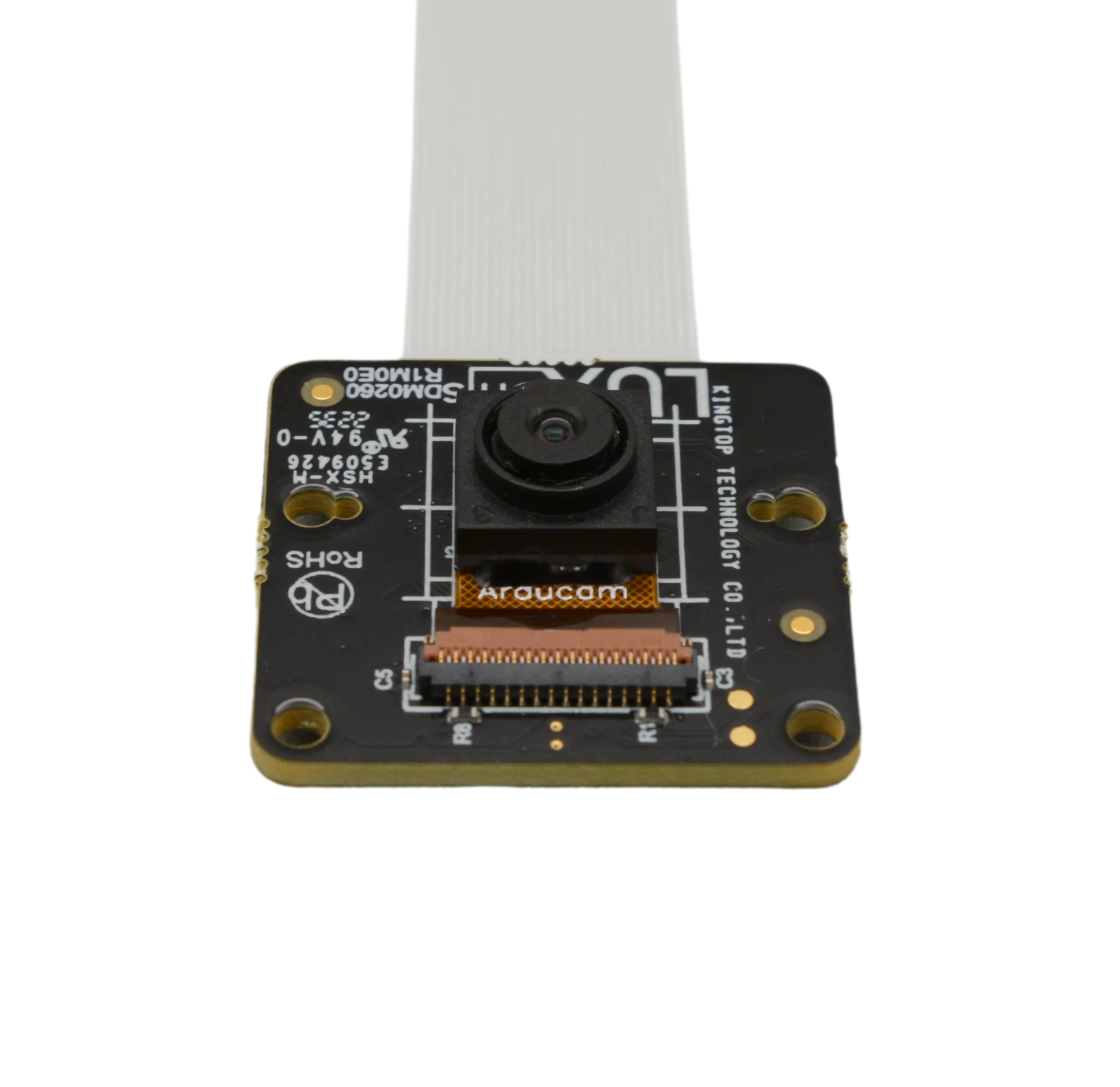

The OAK-FFC-OV9282 is a carrier board for the Arducam PY091 OV9282 camera module. A 26-pin FFC is used to carry 5V power, 2-lane MIPI, I2C, and other control signals between this camera module and the controller baseboard.
Camera Specifications
| Mono Camera | |
| Sensor | OV9282 |
| Type | Global Shutter |
| DFOV / HFOV / VFOV | 89° / 80° / 55° |
| Resolution | 1MP (1280x800) |
| Focus | Fixed-Focus: 19.6 cm - ∞ |
| Max framerate | 120 FPS |
| Bandpass filter | 940mm |
Specifications

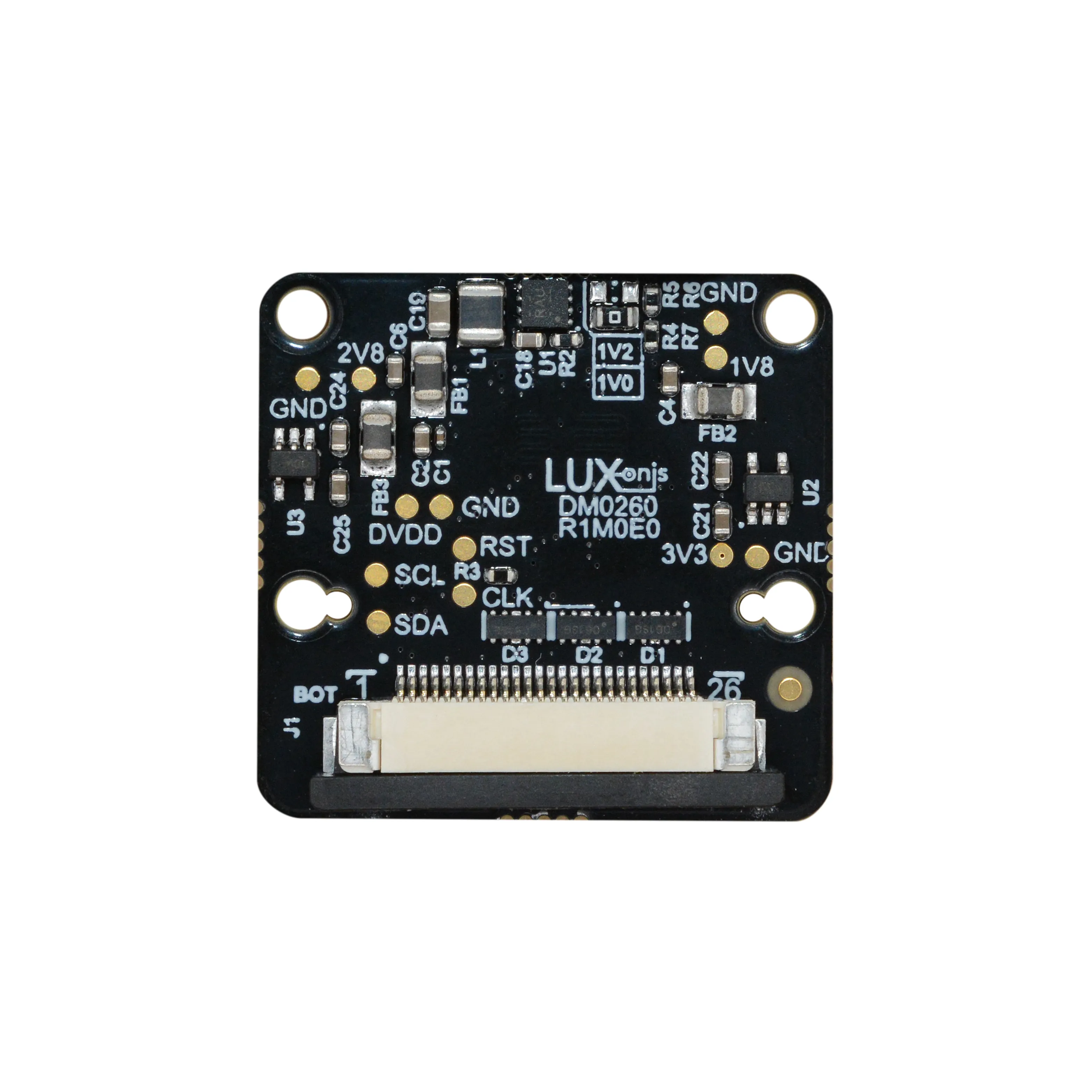

Dimensions- Width: 25 mm
- Height: 24 mm
- 26 pin 0.5mm FFC interconnect to baseboard
- 24 pin interface to OV9282 camera module
- 2-lane MIPI
- Aux/Control signals to camera module
- 5V power input via FFC
- On-board power generation for camera module
- Design files produced with Altium Designer 20
More information can be found .
Package Includes
Package contains:

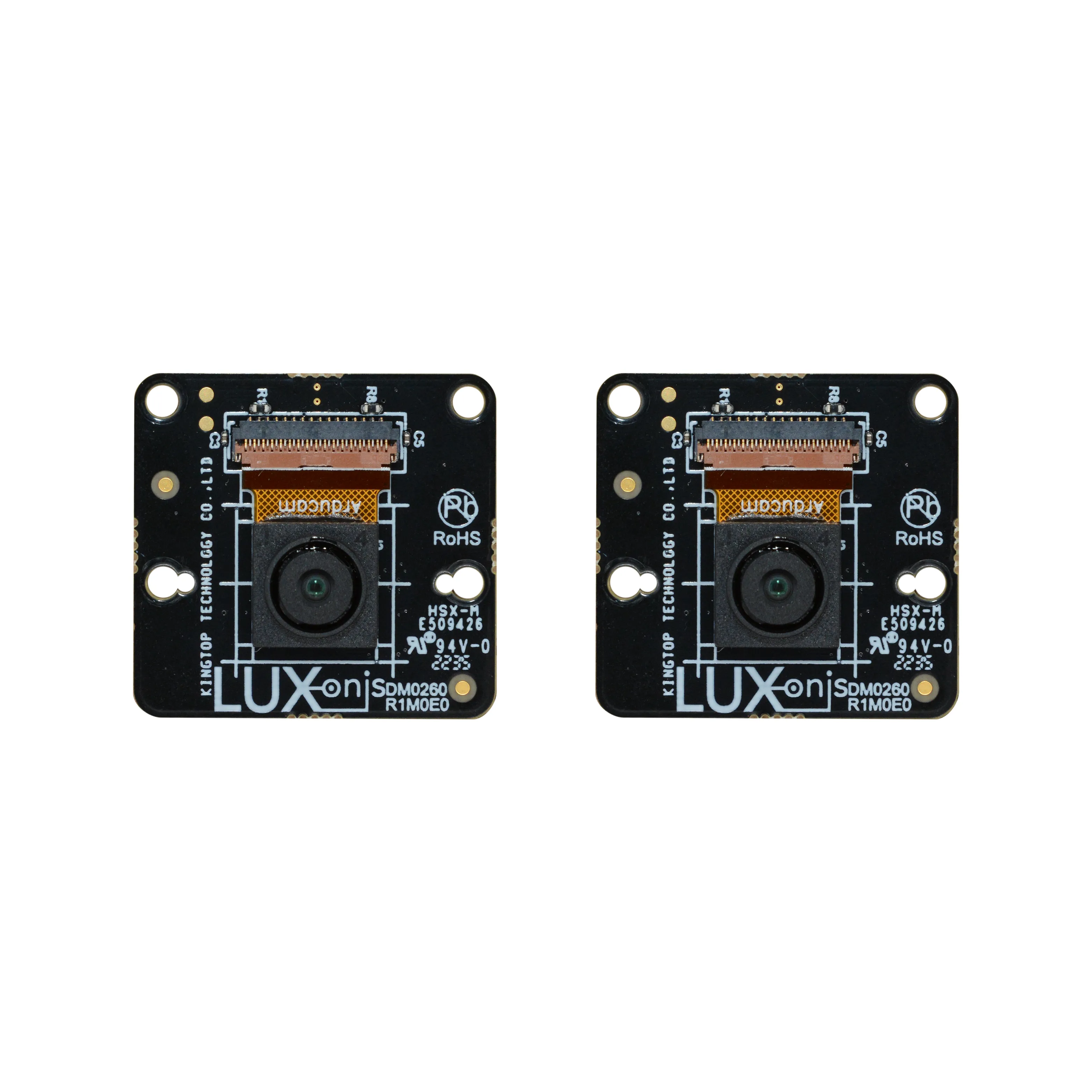

- 2 x OAK-FFC OV9282 camera module
- 2 x Flexible flat cable, 15cm
