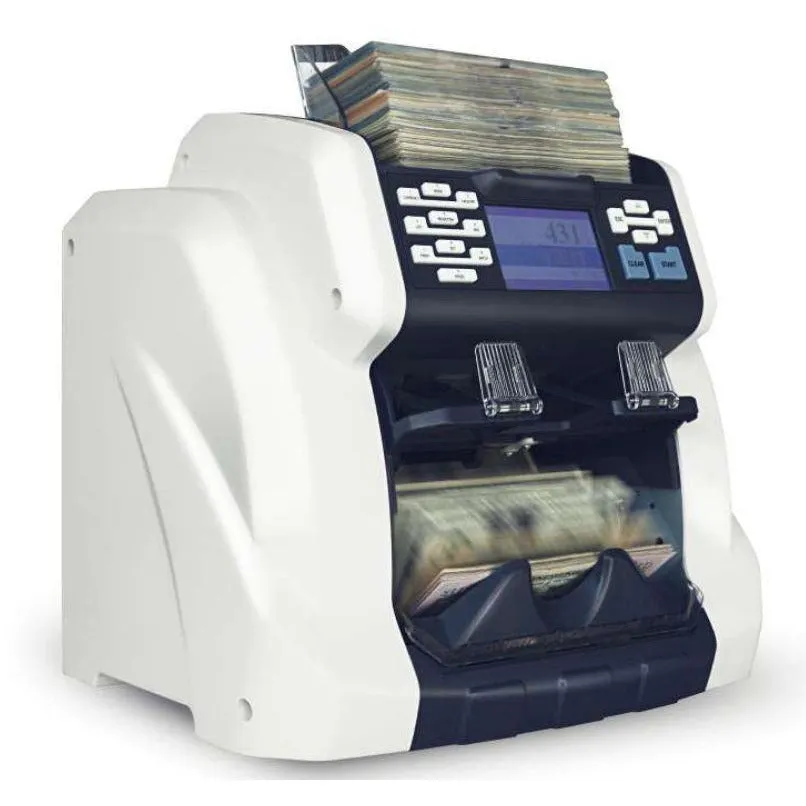

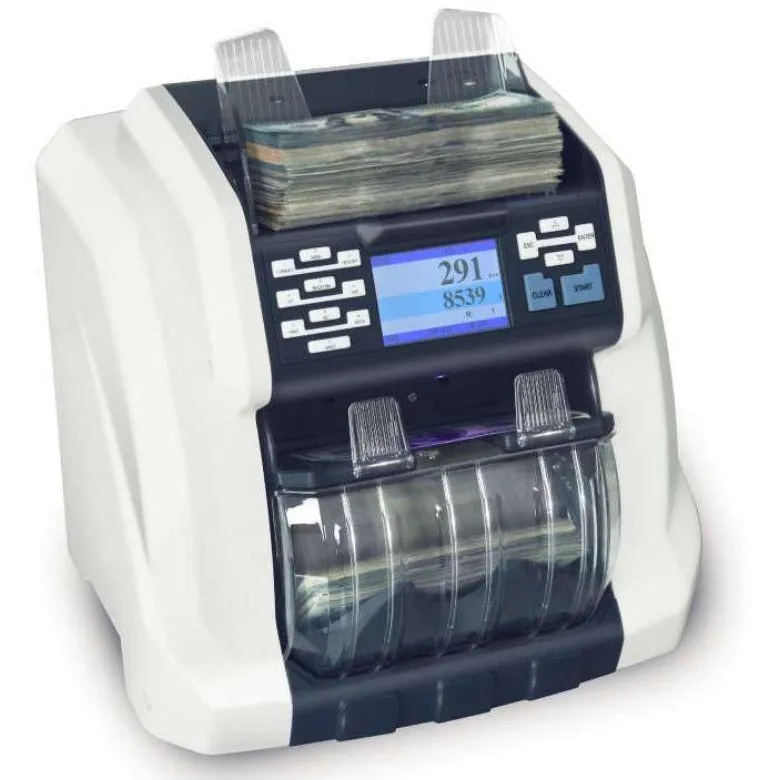

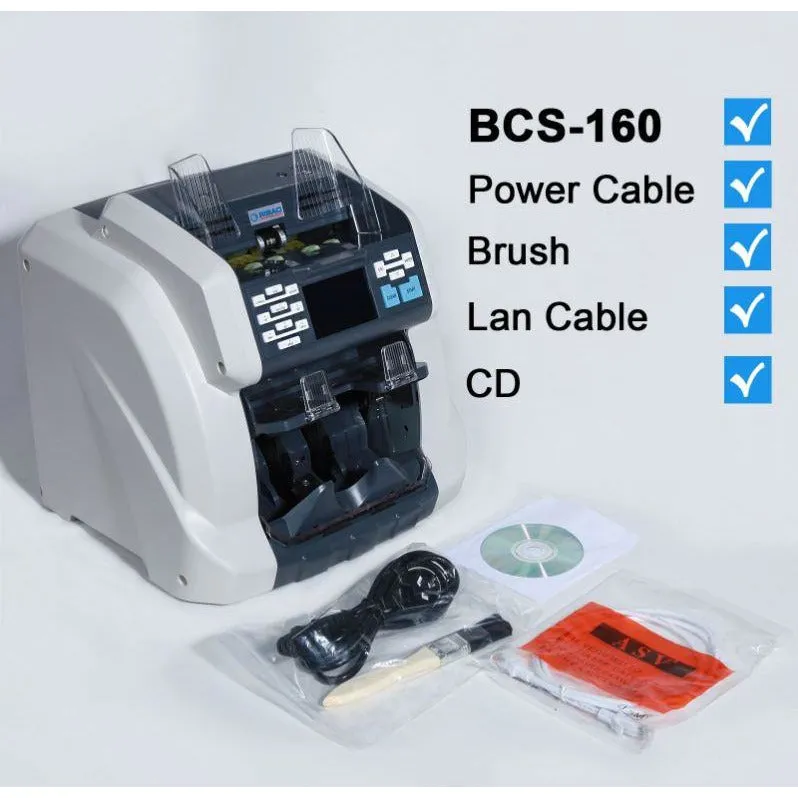

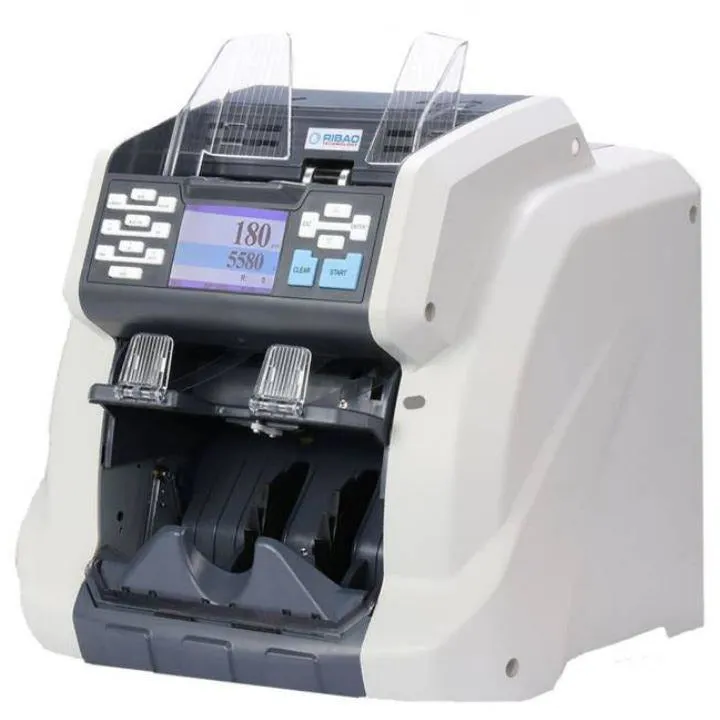

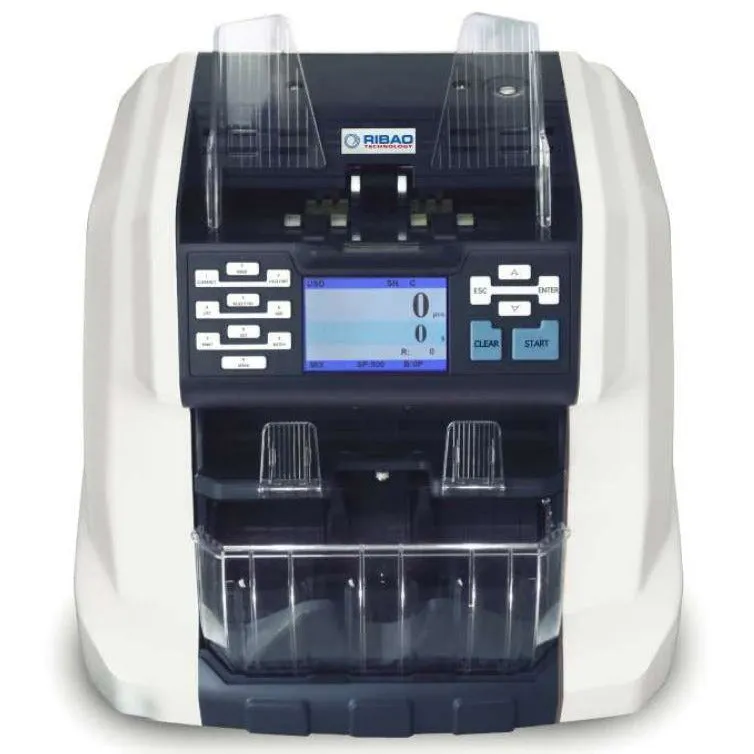

Ribao BCS-160 Bank Grade Two-Pocket Mixed Value Counter Bill Counter & Sorter
The BCS-160 model is an non-stop 1 1 pocket banknote discriminator and sorter that is cost effective, reliable, and heavy duty. It is equipped with double CIS, the latest counterfeit detection technology. It is very easy to update the software by USB with the new issues and counterfeit banknotes.

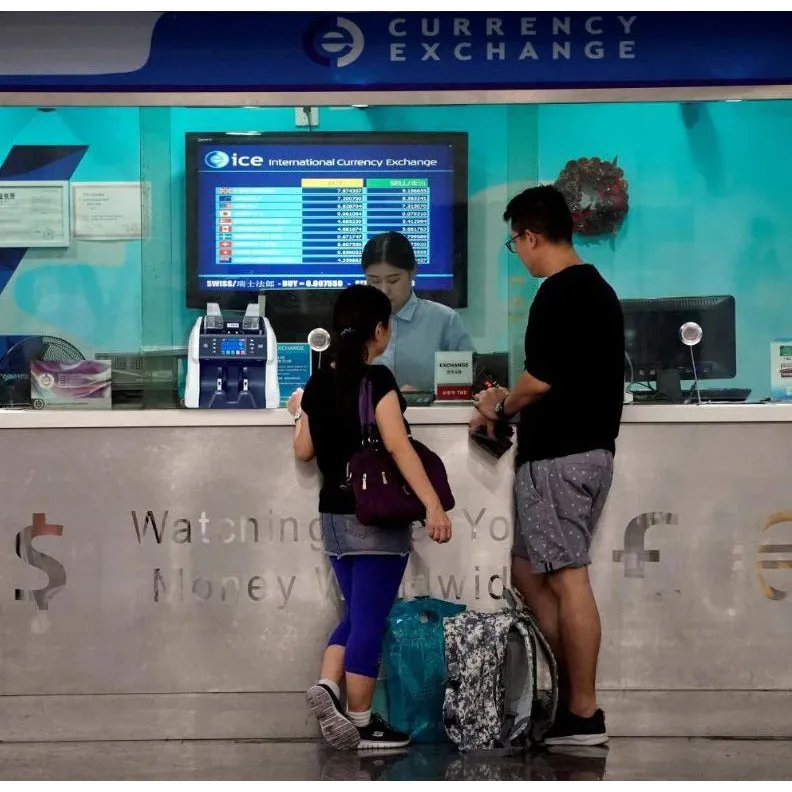

It can collect banknote images both through the USB and LAN port. This machine is ideal for bank tellers and CIT companies where banknotes need to be counted.
Features
-
Compact
So compact it can be placed on a small table.
-

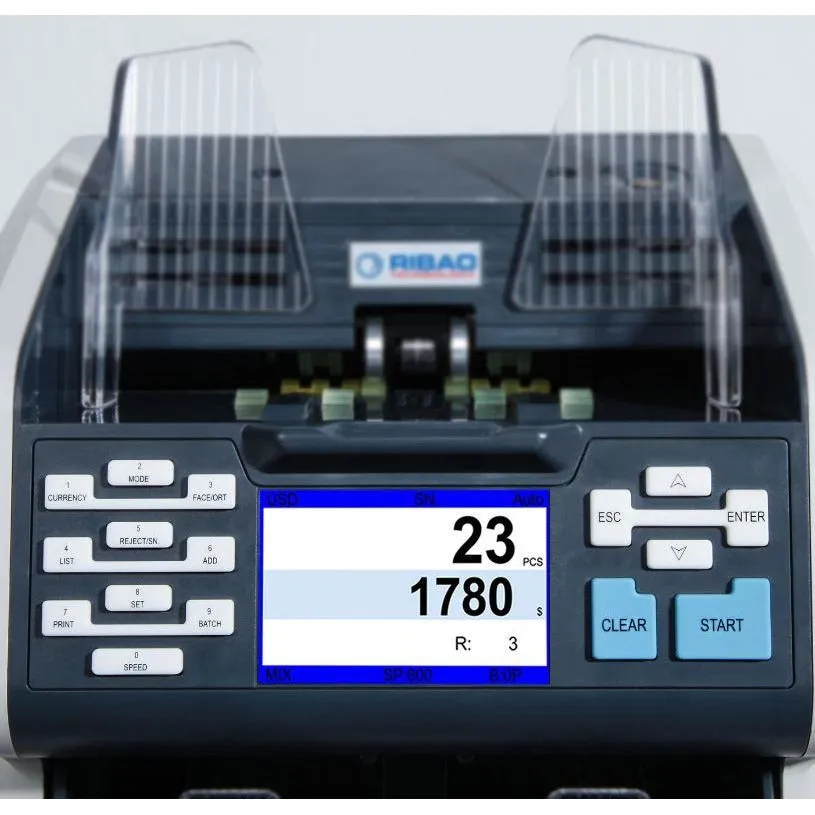

TFT Screen
It has an easy to read 3.5 inch TFT screen.
-

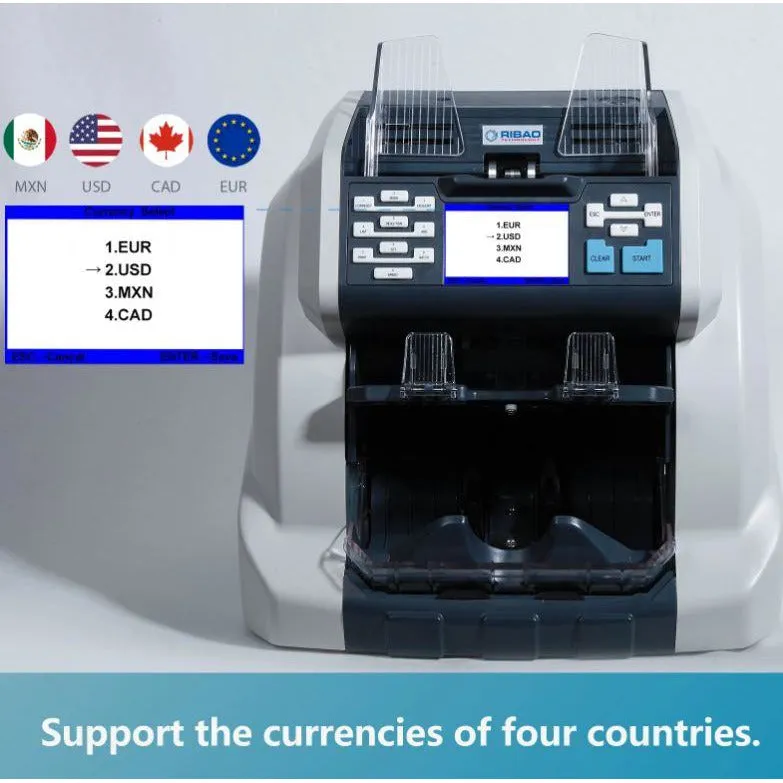

Multicurrency Capability
One machine can be installed with 20 different currencies.
-
Reliable Counterfeit Detection
It can detect notes by UV, MG, MT, IR, CIS and by serial number.
-

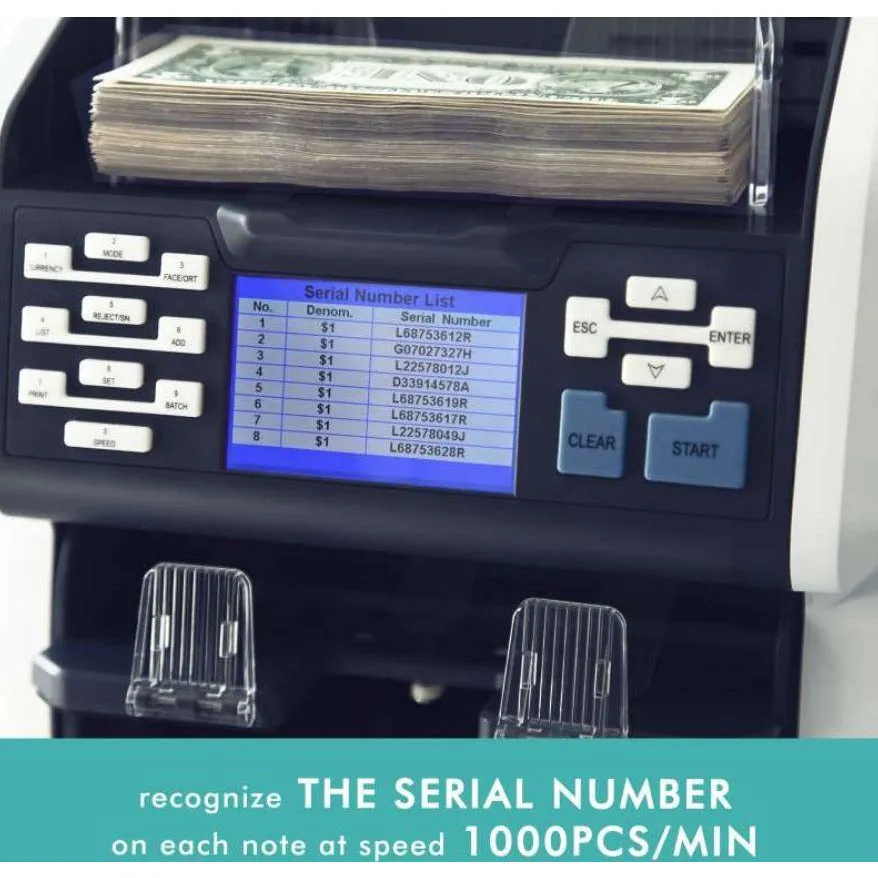

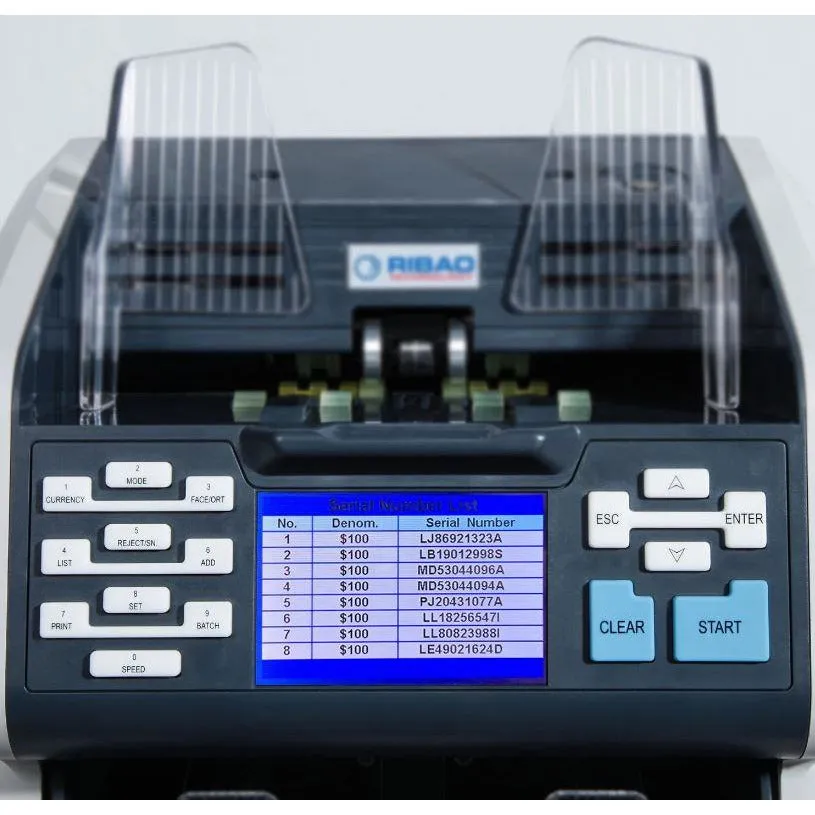

Serial Number Read and Print
It can read the serial number from both sides, output and print.
-
Software Updates
For new currency you can download updates through a USB memory stick or PC interface.
-
Banknote Info Collection
It can collect banknote, UV, MG and IR information through a USB or LAN port. RIBAO engineers can then use that information for software development.
-

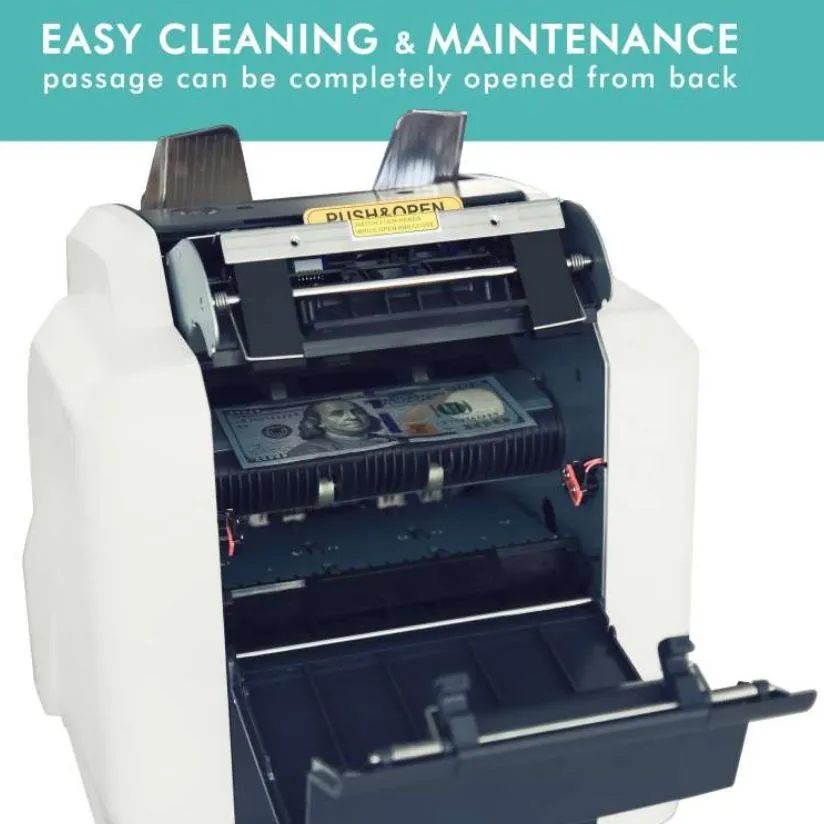

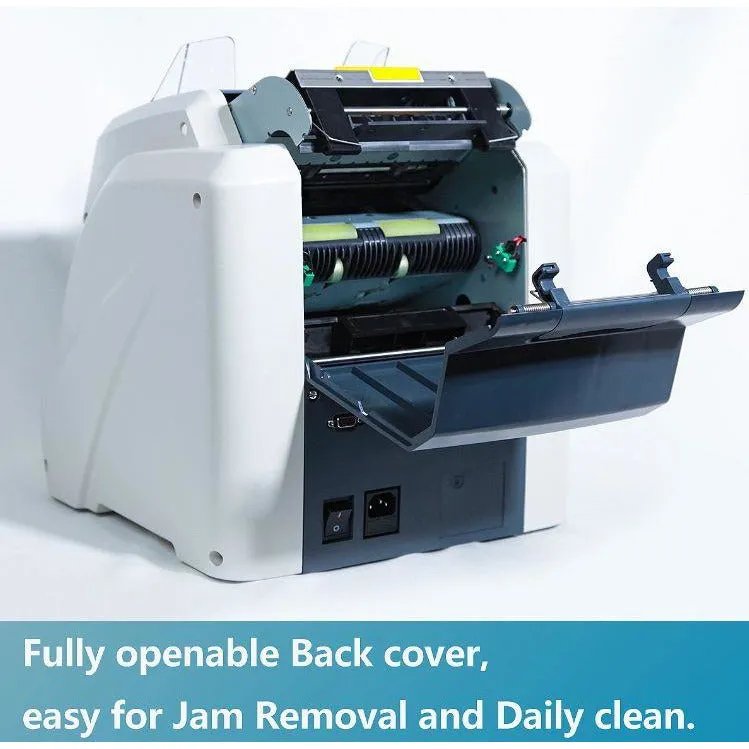

Easy Jam Removal and Sensor Cleaning
There is a easy to open passage on the rear side in order to clear out jammed notes and clean the sensors.
-

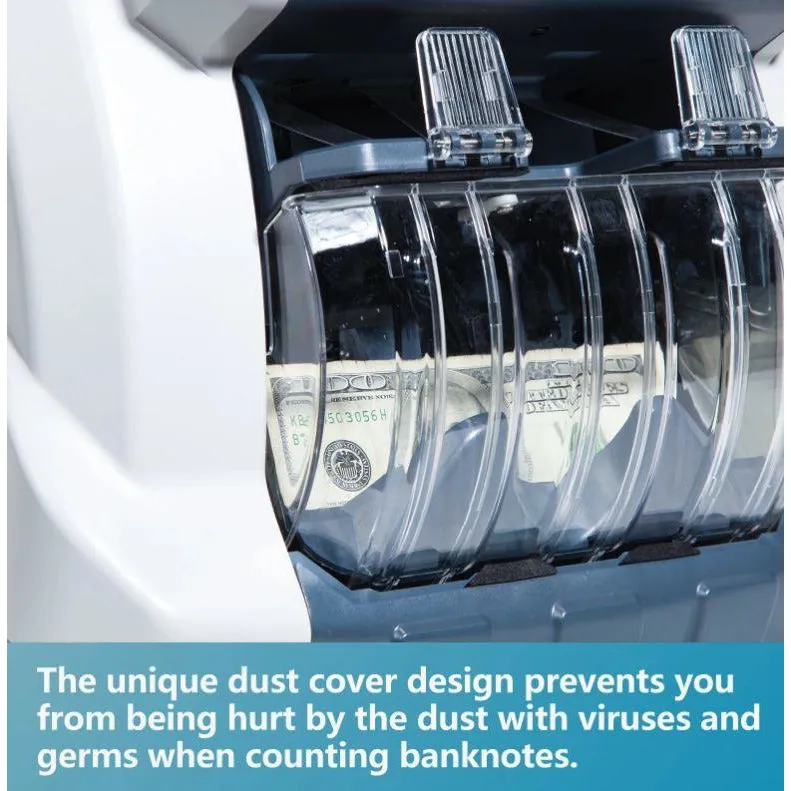

Dust Proof Cover
There is a dust proof cover to help limit the user’s exposure to dust.
- Compact size with a 3.5'' TFT screen, can be placed on small tables and it is easy to read the contents.
- Counting speed: 1200pcs/mim in CNT mode, 800/1000pcs/min in MIX & SDC mode.

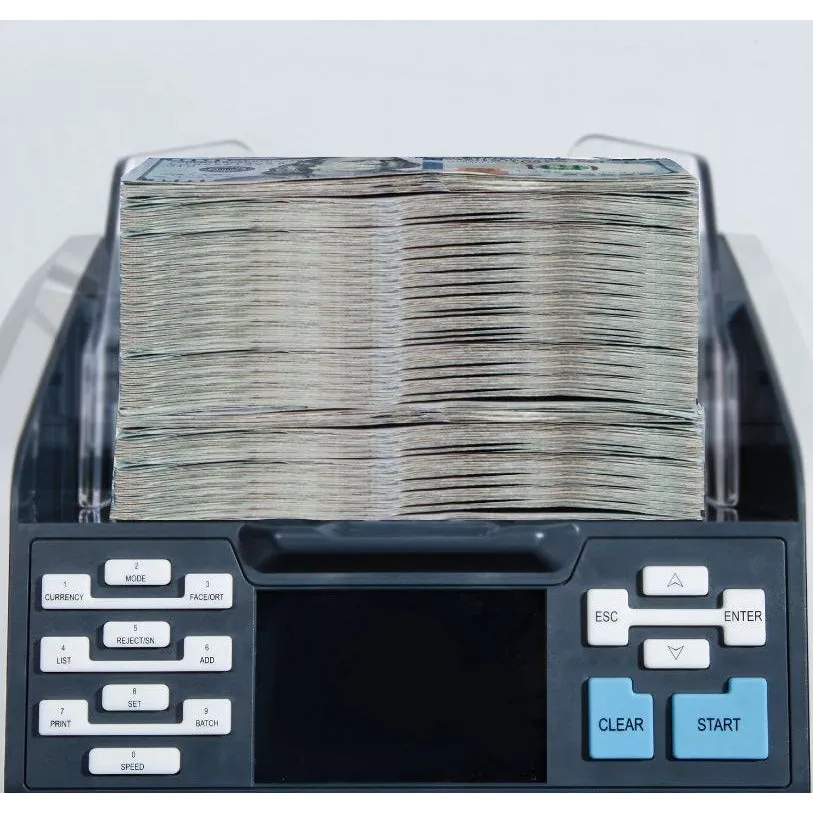

- Large capacity: Hopper capacity 600pcs, Stacker capacity 200pcs, and rejected pocket capacity 100pcs.
- Counterfeit & non-stop counting: UV,MG,MT,IR and double CIS with the latest and advanced counterfeit technology are used. It won't stop counting with the rejected pocket.
- Warranty and technological support: We offer a 2-year warranty against manufacturer defect. Software can be upgraded through USB port.It can be installed with 14 different currencies in one machine at most. Please feel free to contact us for more technological support.
Specs
| Hopper Capacity | 500pcs |
|---|---|
| Stacker Capacity | 300pcs |
| Rejected pocket capacity | MAX 100pcs |
| Display | 3.5 inch TFT screen |
| Suitable Note Size | Length: 100mm~175mm |
| Width: 50mm~90mm | |
| Suitable Note Thickness | 0.05mm~0.12mm |
| Speed (pcs / min) | 800/1000pcs/min(MIX & SDC Mode) |
| 1200pcs/min(CNT Mode) | |
| Batch Number | 5~199pcs |

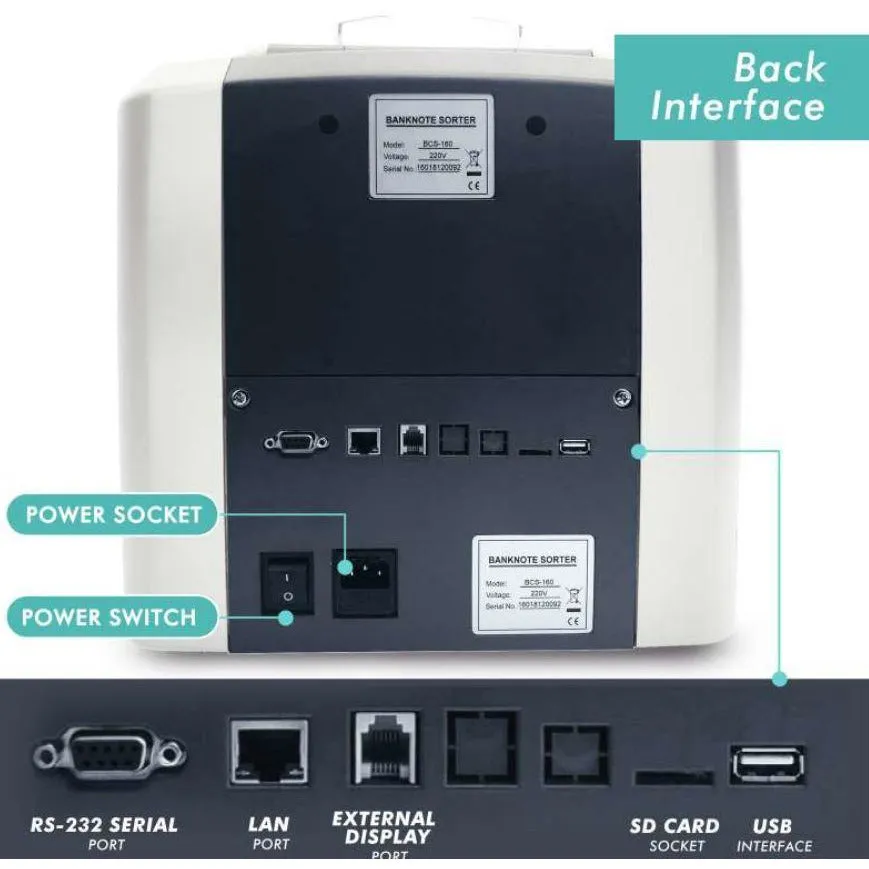

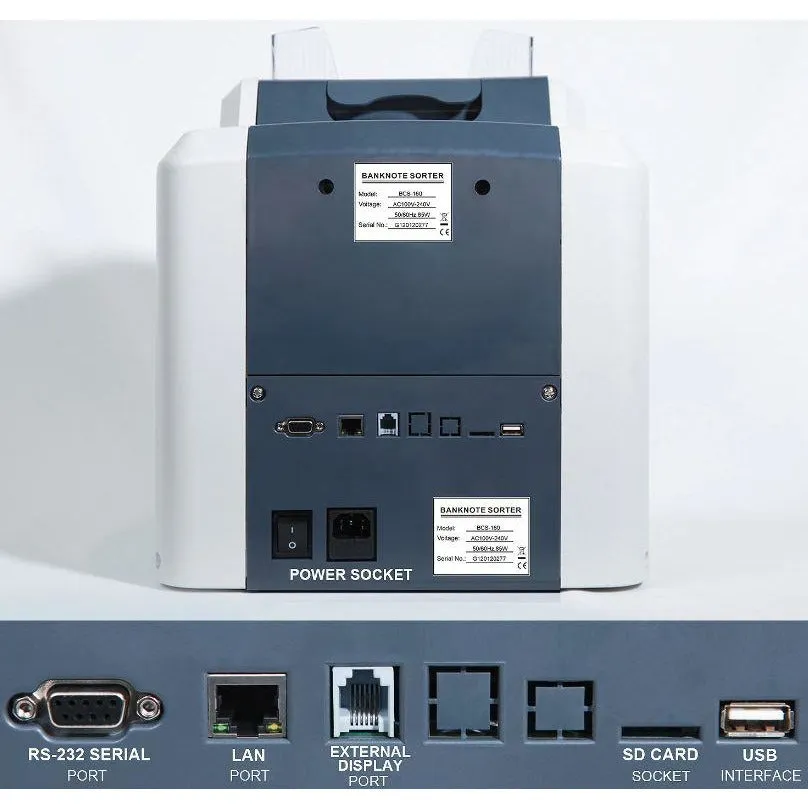

| Connectivity | External printer/PC port: RS232 |
| LAN port:RJ45 | |
| External display port: RJ12 | |
| Software upgrade/Information collection port: USB/LAN | |
| Save counted information port: Micro-SD card | |
| Available currency software | more than 40 currencies |
| Operation modes | Single denomination sorting/Mix counting/Pieces counting/Face/Orientation Sorting |
| Counterfeit detection | Ultraviolet detection(UV) |
| Magnetism detection(MG) | |
| Metal thread detection(MT) | |
| Infrared image detection(IR) | |
| Power supply | AC 220V 50Hz ±10% |
| AC 110V 60Hz ±10% | |
| Power consumption | Sleeping mode ≦15W |
| Operation mode≦70W |
Packing Details
| Machine Dimension(LxWxH) | 315mmx330mmx330mm |
|---|---|
| Net Weight | 13kg |
| Transportation Packing | 1unit/carton |
| Carton Dimension | 415mmx415mmx475mm |
| Gross Weight/carton | 15kg |
