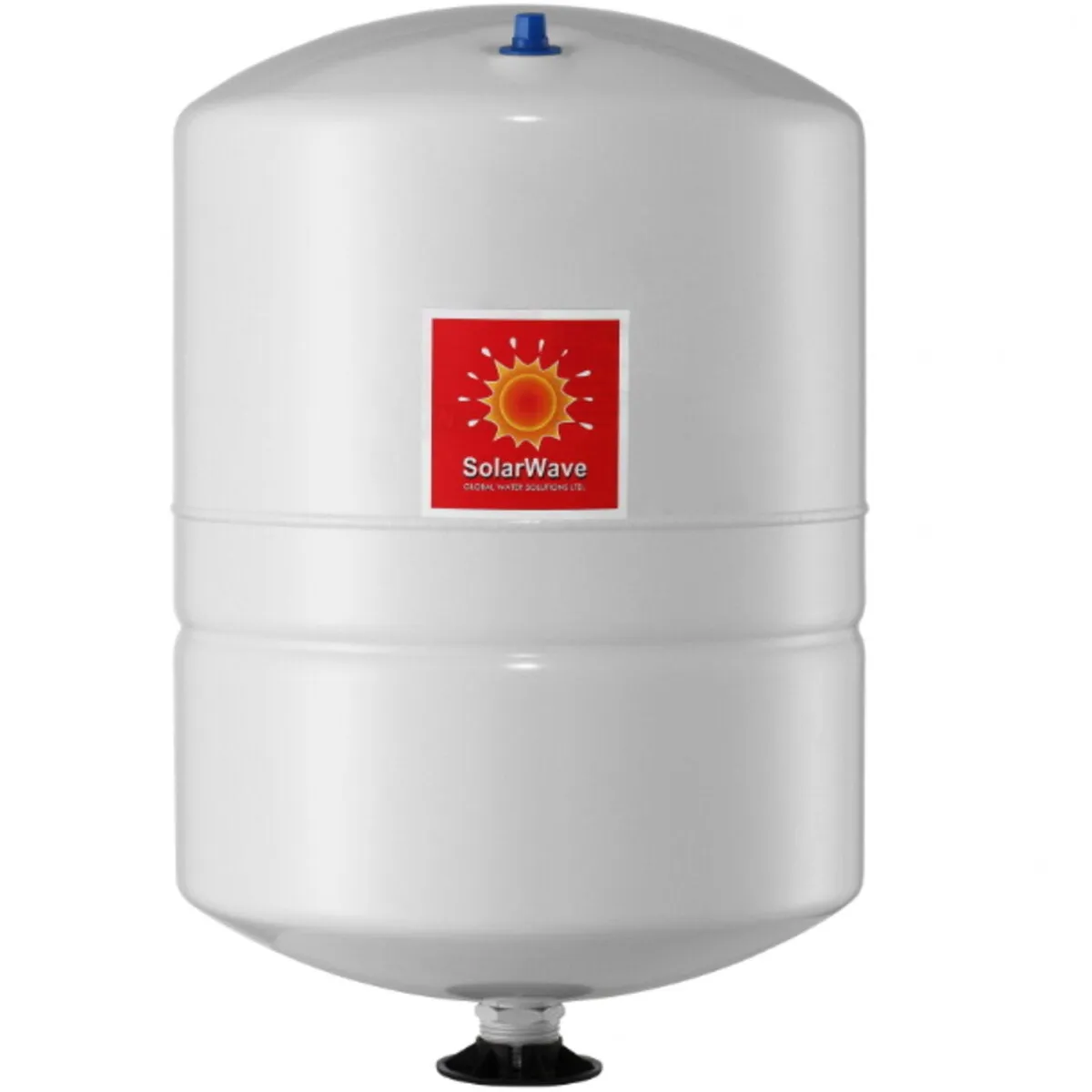

EXPANSION TANK 24 LITERS ATT. 3/4” SOLAR WAVE

The SolarWave™ SWB-24 LX tank is part of Global Water Solution's extensive product range which offers a complete line of expansion vessels ideal for different applications including closed loop solar systems, solar thermal expansion hot water. SolarWave™ expansion vessels are designed to control the expansion and contraction of heat transfer fluids in solar heating systems to keep the entire system efficient and operational.

On the outside, the almond-coloured two-component polyurethane paint applied to an epidoxic base coat guarantees high resistance to atmospheric agents and durability over the years.

SolarWave™ tanks undergo individual quality tests during the manufacturing stage to ensure the structural integrity of each tank.

SolarWave ™ tanks represent, to date, the best expansion vessels for solar applications available on the market, suitable for a wide range of applications, do not require any maintenance

TECHNICAL FEATURES

Special butyl diaphragm for high temperatures

High expansion factor

Patented stainless steel connection

Two-component polyurethane varnish on an epoxy base

Air leak proof shut off valve

Precharge in the bowl: 1.9 bar / 28 psi

Maximum operating pressure: 10 bar / 150 psi

Maximum system temperature: 130° C / 266° F

DIMENSIONS

Height: 444 mm - Width 290 mm - Weight 504 kg
