Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data

• Flow Range: 0-34
• GPM Head Range: 0-33 Feet
• Minimum Fluid Temperature: 40 degrees F (4 degrees C)
• Maximum Fluid Temperature, Cast Iron: 230 degrees F (110 degrees C)
• Maximum Fluid Temperature, Stainless Steel: 220 degrees F (104 degrees C)
• Maximum Working Pressure: 125 PSI
• Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

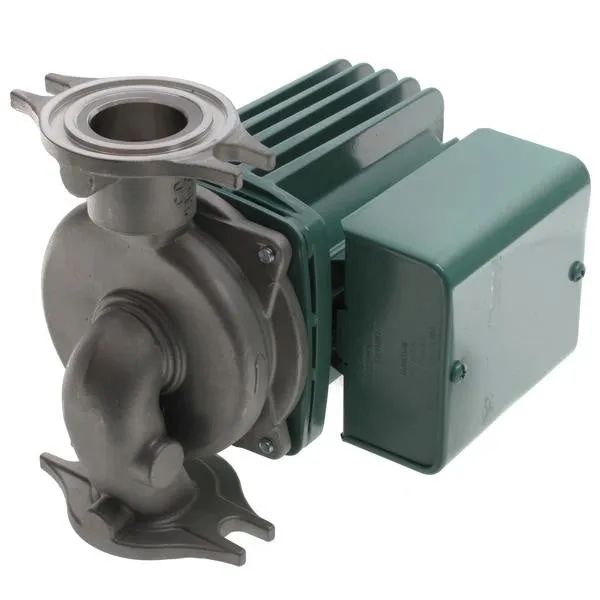

The Taco 0013 is specifically designed for high head / high flow applications in Large Residential and Light Commercial systems. Ideal for high pressure drop Boilers, Fan Coil units, Heat Exchangers, larger Radiant systems, Heat Recovery and Geothermal systems. The Bronze or Stainless Steel 0013 should be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0013 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs.

Features

• Standard High Capacity Output Compact Design
• Quiet, Efficient Operation
• Unique Replaceable Cartridge Design-Field Serviceable
• Direct Drive-Low Power Consumption
• Self-Lubricating
• No Mechanical Seal
• Unmatched Reliability --Maintenance Free
• Universal Flange-to-Flange Dimensions
• Cast Iron or Stainless Steel Construction

Typical Applications

• Hydronic Heating
• Add-A-Zone Additions
• Zoning with Circulators
• Chilled Water Cooling
• Domestic Water Systems

Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 0013-004RP
Cartridge Assembly Complete: 0013-008RP
