Product Details
＋

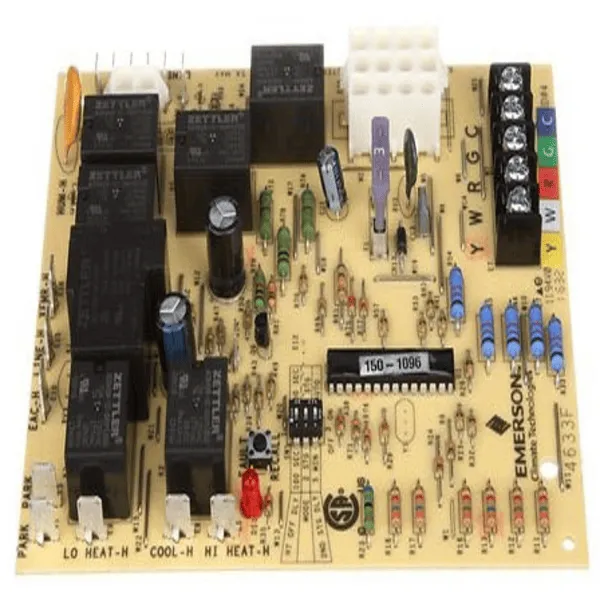

- Integrated Furnace Control
- Type 1 or 2-Stage, Integrated
- Ignition Source Hot Surface
- Prepurge Time 30 Second
- Flame Failure Response Time 2 Second
- Valve Rating 0.45 Amp at 30 Volt AC
- Temperature Rating -40 to 176 Deg F
- Application Furnace
- Voltage Rating 25 Volt AC at 50/60 Hertz
- Current Rating 1.5 Amp at 25 Volt AC 50/60 Hertz (Valve Relay), 6 Amp at 120 Volt AC 50/60 Hertz (Igniter Relay), 2.2 FLA to 3.5 LRA at 120 Volt AC (Inducer Relay), 14.5 FLA to 25 LRA at 120 Volt AC (Circulator Relay)
- Mounting Type Snap in Standoff Humidity 5 to 93 Percent (Non-Condensing)
- Heat Delay 30 Second (On), 100/150 Second (Off)
- Cool Delay 6 Second (On), 45 Second (Off)
- Post Purge 25 Second
