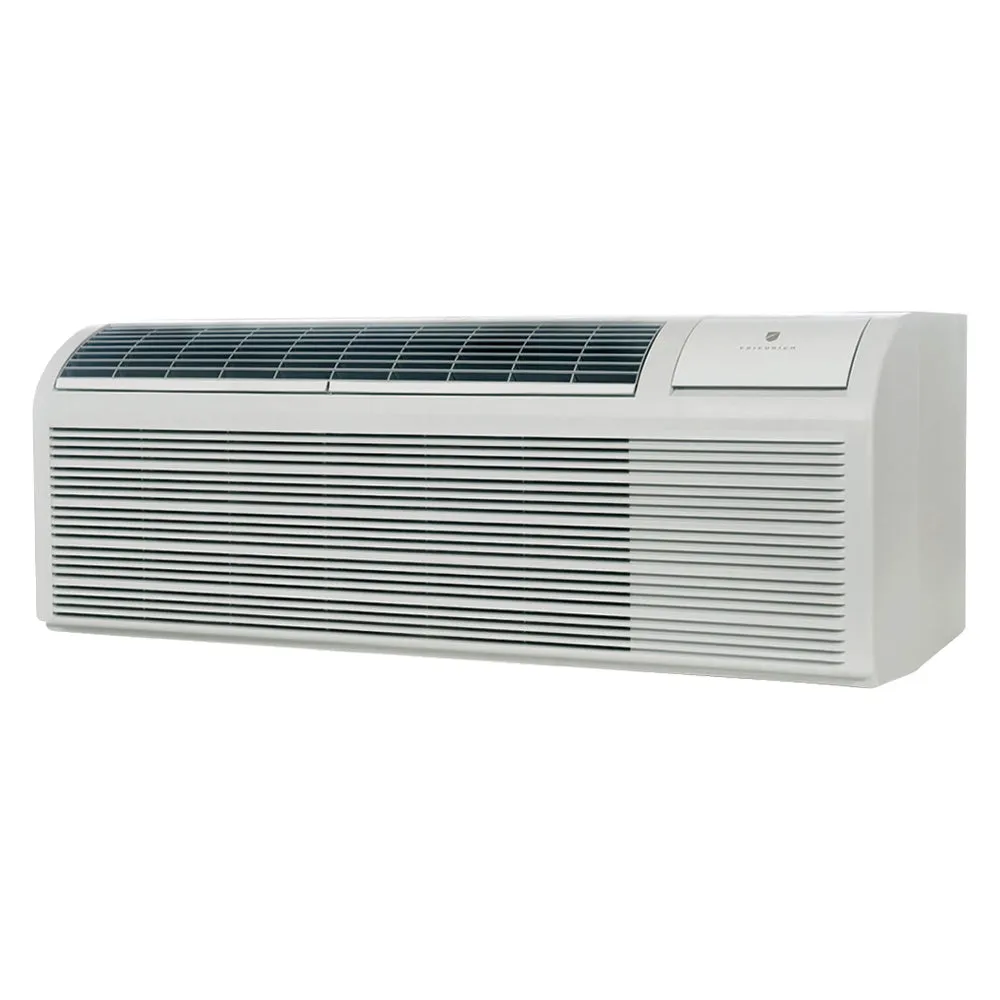

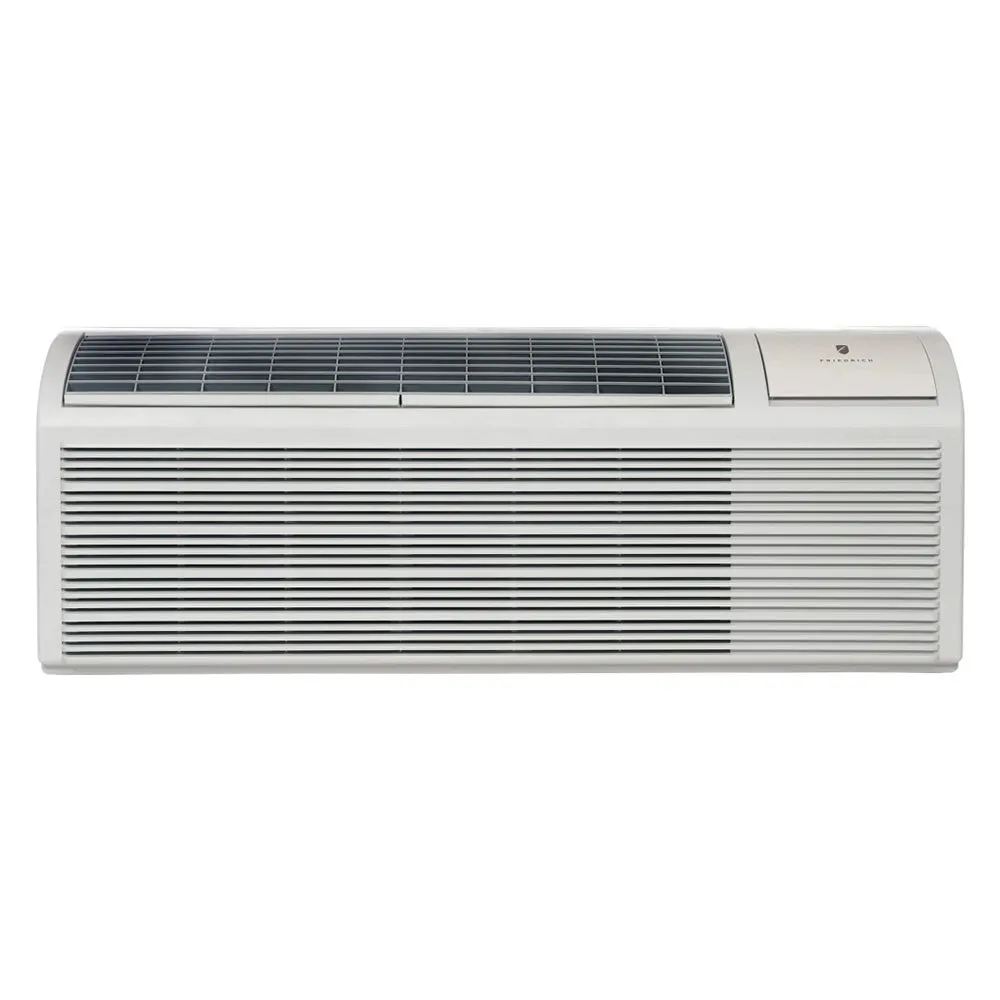

The ZoneAire Select PZH09K3SB is a 42-inch PTAC unit designed for efficient climate control, offering a 9,600 BTU cooling capacity and an 815 BTU heating capacity with a heat pump system. It features an energy efficiency rating of 11.8, making it a cost-effective choice for heating and cooling needs. The unit operates at a maximum of 3.8 amps for cooling and 3.3 amps for heating, delivering reliable performance. With an indoor airflow of 400 CFM on high and 250 CFM on low, it ensures effective air circulation. The unit is compatible with 230/208 volts and features a 6-20P plug type. Weighing 109 lbs, the PZH09K3SB is ideal for applications such as hotels and apartments where energy-efficient and space-saving climate control is needed.

Features:

• Cooling Capacity: The unit delivers 9,600 BTU of cooling power, which is ideal for medium to small spaces. This ensures a comfortable indoor environment even on warmer days.

• Heating Capacity: Equipped with a heat pump, the unit provides heating capabilities with a maximum output of 815 BTU. While this is lower than traditional electric heat systems, it is optimized for milder climates or spaces that primarily need supplemental heating.

• Electric Heat Kit: The unit comes with a 3.6 kW electric heat kit, which supports additional heating when required, complementing the heat pump functionality.

• High Efficiency: With an EER of 11.8, the unit is designed to maximize performance while minimizing energy consumption, helping to reduce operating costs.

• Eco-Friendly Refrigerant: It uses R-410A refrigerant, which is chlorine-free and has no ozone depletion potential, making it a more environmentally responsible choice.

• Dimensions & Weight: The ZoneAire Select PZH09K3SB PTAC unit measures 42 inches in width, 22 inches in depth, and 16 inches in height, making it a compact yet powerful climate control solution. With a total weight of 109 lbs, it is sturdy and well-suited for thru-the-wall installation.

• Chassis Type: Built with a thru-the-wall chassis, the unit is designed for easy and secure mounting in wall cavities, eliminating the need for external ductwork.

• Window Type: It is also available in a standard window-type configuration, providing flexibility in installation options for various building designs.

• Digital Control Interface: The unit features an intuitive digital control panel, allowing users to precisely adjust the temperature, fan speeds, and mode settings for optimal comfort.

• Air Circulation Options: The dual fan settings (400 CFM on high and 250 CFM on low) let you tailor the airflow to the specific needs of the space, ensuring even distribution and efficient performance.

• Ventilation: With a dedicated ventilation output of 75 CFM, the unit helps maintain fresh indoor air quality, an important aspect in high-occupancy environments.

• Voltage & Plug Type: Operates at 230/208 volts, making it compatible with standard electrical systems in many commercial and residential applications. The unit uses a 6-20P plug, which facilitates straightforward connection to the existing electrical infrastructure.

• Cooling Mode: Draws a maximum of 3.8 amps and 815 watts, ensuring efficient performance without overloading circuits.

• Heating Mode: Uses 3.3 amps and 710 watts, reflecting its optimized power usage for supplemental heating.
