Product Description:

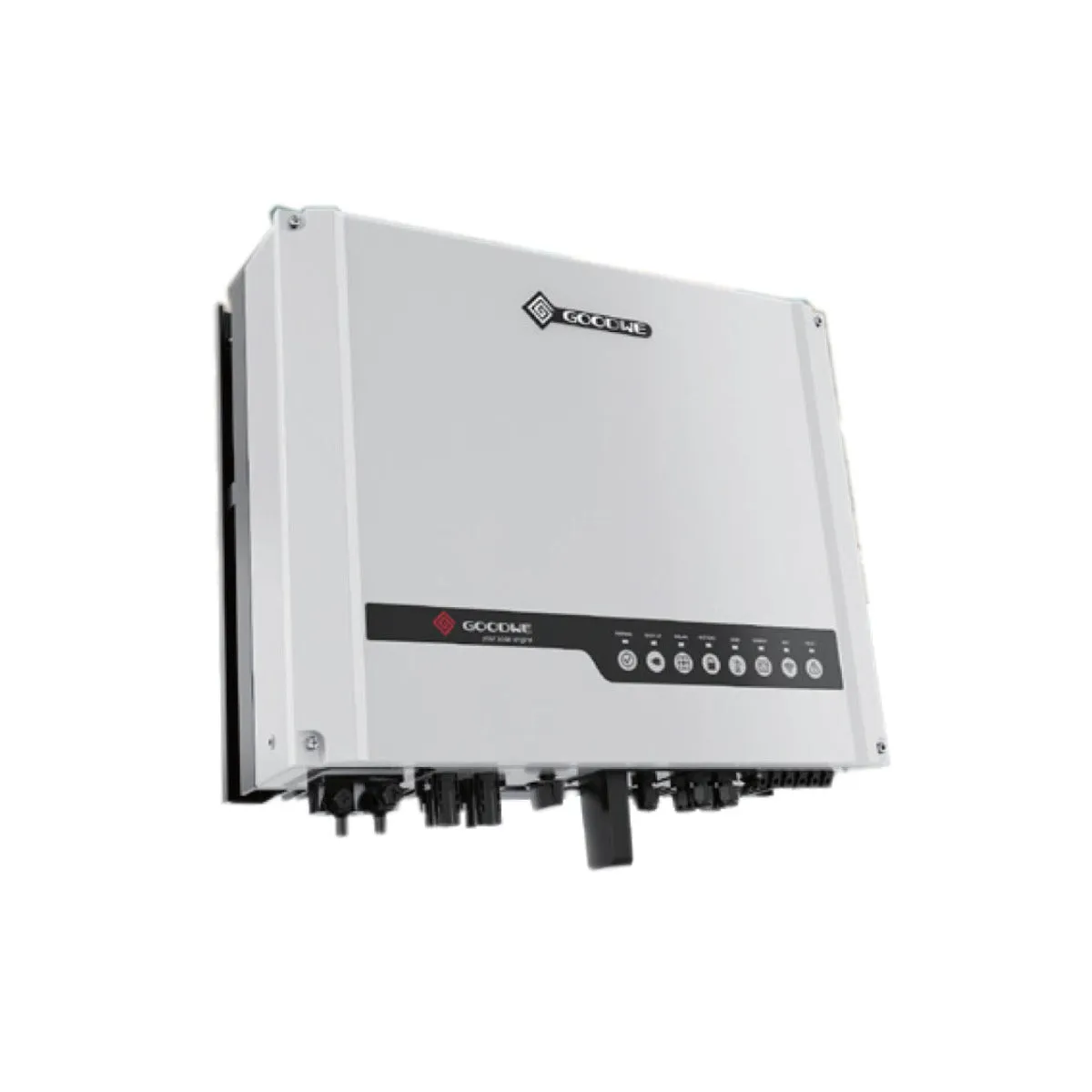

The GoodWe ES series bi-directional energy storage inverter can be used for both on-grid and off-grid PV systems, with the ability to control the flow of energy intelligently. During the day, the PV array generates electricity which can be provided either to the loads, fed into the grid or charge the battery, depending on the economics and set-up. The electricity stored can be released when the loads require it during the night, including inductive loads such as air conditioners or refrigerators. Additionally, the power grid can also charge storage devices via the inverter. An all-round intelligent system for maximum energy flexibility.

Features:

• Charge controller and inverter integrated
• Export control (Zero export)
• 8 ms UPS-level Switching
• Maximum charge and discharge up to 100A
• IP65 dustproof and waterproof
• Fanless design, long lifespan
• SA: NRS 097 certified and

Battery Input Data:

• Battery Type: Li-Ion
• Nominal Battery Voltage (V): 48
• Max. Charging Voltage (V): ≤60 (Configurable)
• Max. Charging Current (A): 100
• Max. Discharging Current (A): 100
• Battery Capacity (Ah): 50~2000
• Charging Strategy for Li-Ion Battery: Self-adaption to BMS

PV String Input Data:

• Max. DC Input Power (W): 6500
• Max. DC Input Voltage (V): 580
• MPPT Range (V): 125~550
• Start-up Voltage (V): 125
• Min. Feed-in Voltage (V): 150
• MPPT Range for Full Load (V): 215~500
• Nominal DC Input Voltage (V): 360
• Max. Input Current (A): 11 / 11
• Max. Short Current (A): 13.8 / 13.8
• Number of MPPTs: 2
• Number of Strings per MPPT: 1

AC Output Data (On-grid):

• Nominal Apparent Power Output to Utility Grid (VA): 4600
• Max. Apparent Power Output to Utility Grid (VA): 5100
• Max. Apparent Power Output from Utility Grid (VA): 9200
• Nominal Output Voltage (V): 230
• Nominal Output Frequency (Hz): 50/60
• Max. AC Current Output to Utility Grid (A): 24.5
• Max. AC Current from Utility Grid (A): 40
• Output Power Factor: ~1 (Adjustable from 0.8 leading to 0.8 lagging)
• Output THDi (@Nominal Output): <3%

 AC Output Data (Back-up)

• Max. Output Apparent Power (VA): 4600
• Peak Output Apparent Power (VA): 6900, 10sec
• Max. Output Current (A): 20
• Nominal Output Voltage (V): 230 (±2%)
• Nominal Output Frequency (Hz): 50/60 (±0.2%)
• Output THDv (@Linear Load): <3%

 Efficiency:

• Max. Efficiency: 97.6%
• Max. Battery to Load Efficiency: 94%
• European Efficiency: 97%

Protection:

• Anti-Islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output Over Current Protection: Integrated
• Output Short Protection: Integrated
• Output Over Voltage Protection: Integrated

General Data:

• Operating Temperature Range (°C) : -25~60
• Relative Humidity: 0~95%
• Operating Altitude (m): ≤4000
• Cooling: Natural Convection
• Noise (dB): <25
• User Interface: LED & APP
• Communication with BMS: RS485; CAN
• Communication with Meter: RS485
• Communication with Portal: Wi-Fi
• Weight (Kg): 30
• Size (WxHxD) mm : 516 x 440 x 184
• Mounting: Wall Bracket
• Protection Degree: IP65
• Standby Self-Consumption (W) : <13
• Topology: Battery Isolation
• Warranty: 5 Years
